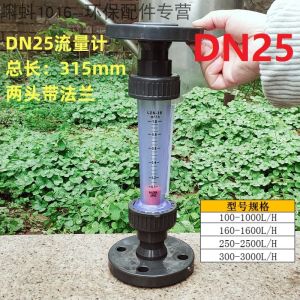

LFS/LZB Tubular Dn25 Plastic Floater Flowmeter Liquid Water LZs Yuanjia Flowmeter Pure Water Rotor

Structure The structure of the plastic flowmeter is as shown in the figure: The transparent plastic taper pipe installed vertically from the small end to the lower and the large end and the float that can move up and down in the Taper Pipe are mainly used as measuring elements, with nuts, nozzles, stop gear and O-ring. When the fluid flows from bottom to bottom in the cone tube, a pressure difference is generated up and down on the float, which makes the float rise. When the pressure difference is in force balance with the gravity, buoyancy and viscous force of the float, the float is in a static position, when the flow rate changes, the flow rate of the fluid flowing through the annular gap between the cone tube and the float changes, the pressure difference between the float and the float changes accordingly, and the float moves up and down, therefore, the height of the resting position of the float can be used as a measure of the flow rate. Installation(1) before installation, gently take out the smooth support in the instrument with tool pointed pliers, and then reinstall it. During installation, pay attention to whether the rubber ring is installed in the groove of the pipe to prevent water leakage. (2) the interface of flow meter can be connected with ABS plastic pipe or PVC plastic pipe by special dehydration and bonding. It can also be connected with metal flange after being connected by plastic method. (3) the flowmeter must be installed vertically without obvious inclination. Its installation height should be convenient for reading the float. When reading, the line of sight and float should be horizontal. (General standard: the optimal flow rate required is 50% 70% of the maximum flow rate of the flowmeter. Try not to use the maximum number.) (4) in the upstream and downstream import and export of the instrument, the straight pipe section with 5 times the instrument caliber shall be guaranteed. (5) the measured fluid pressure must be stable. If the fluid pressure is unstable, the float will fluctuate and cannot be measured correctly. A buffer or a valuer should be set upstream of the flowmeter. Use when the flowmeter is in use, the upstream valve should be opened slowly to fully open, and then the downstream regulating valve of the flowmeter should be used to adjust the flow. (Prevent the float from sudden upward impact and damage the instrument, and avoid sudden changes in the measured body temperature. If leakage is found in the flow meter during use, it is usually the dislocation or failure of the sealing ring, which should be corrected or replaced.) When the flowmeter is stopped, the upstream valve should be slowly closed first, and then the flow regulating valve downstream of the flowmeter should be closed. LFS long tube flowmeter specifications and parameters Nominal diameter Model LFS Range Accuracy level Size Plug-in pipe Welded pipe Constant temperature and pressure MPa Allowable medium temperature L B1 B2 DN15 LFS-15 10-100L/H 16-160 L/H 25-250 L/H 40-400 L/H 60-600 L/H Level 4 280 20 45 15 20 0.6MPa 0-50 ℃ DN25 LFS-25 100-1000 L/H 160-1600 L/H 250-2500 L/H 300-3000 L/H Level 4 380 32 68 25 32 0.6MPa 0-50 ℃ DN50 LFS-50 400-4000 L/H 0.6-6m 3/H 1-10 m 3/H 2-16 m 3/H Level 4 435 63 98 50 63 0.4MPa 0-50 ℃ Outline size of LFS short tube flowmeter Diameter Model Measuring range Size Plug-in pipe Welded pipe L B1 B2 DN15 LFS-15d 10-100L/H 16-160 L/H 25-250 L/H 60-600 L/H 100-1000 L/H 200 20 45 15 20 DN25 LFS-25d 100-1000 L/H 160-1600 L/H 250-2500 L/H 226 32 60 25 32 DN32 LFS-32d 400-4000 L/H 600-6000 L/H 288 40 74 32 40 DN50 LFS-50d 1000-10000 L/H 1600-16000 L/H 341 63 98 50 63 DN65 LFS-65d 2-16 m 3/H 5-25 m 3/H 8-40 m 3/H 12-60m 3/H 430 75 122 65 75 Water treatment accessories franchise factory direct sales store 【 tadpole 1016 ]] wholesale and Retail aeration head aerator, LFS series plastic float flowmeter, PVC material Y-type filter, water ejector ejector, WNP ejector, FRP series pipeline mixer, PE dosing barrel, dosing mixer, elastic combination biological filler, k1K3 biological filler, ABS and PVC pipe valve fittings, back pressure valve releaser and other sewage treatment accessories. Favorable price, complete models, welcome to consult!
