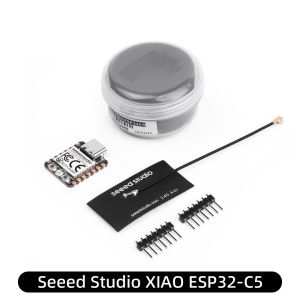

Seeedstudio | Seeed Studio XIAO ESP32-C5 IoT Development Board 5GHz WiFi 6 Connectivity BLE 5.0 Thread Zigbee for IoT Application

Seeed Studio XIAO ESP32-C5 MCU Board   Product Features First Seeed Studio XIAO with 5 GHz Wi‑FiProvides dual‑band Wi‑Fi 6 for cleaner spectrum access and higher throughput in 5 GHz, while maintaining 2.4 GHz compatibility.Comprehensive connectivityDual‑band Wi‑Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 provide comprehensive IoT protocol coverage, with full support for Matter, HomeKit, and MQTT.High‑performance coreEquipped with a 32‑bit RISC‑V single‑core processor running up to 240 MHz, the XIAO ESP32‑C5 integrates 384 KB on‑chip SRAM, 320 KB ROM, 8MB Flash, and 8MB PSRAM. This combination ensures smooth protocol handling, multitasking, and application scalability.Enhanced securitySecure boot, flash encryption, and hardware cryptographic accelerators to protect firmware and data integrity.Built‑in Battery Interface for Low‑Power DesignsIntegrated battery management supporting ultra‑low‑power operation, with deep‑sleep current as low as 15 µA. Specification ProductXIAO ESP32-C5ChipestESP32-C5HR8ProcessorHigh-performance 32-bit RISC-V single-core microprocessor, up to 240MHz and a low-power 32-bit RISC-V core at up to 48MHz (according to Datasheet, up to 20MHz p.69 of Technical Reference Manual v0.2)SRAM384KBRSRAM8MBFlash8MBInterface11x GPIO Pin1x Analog Pin + 4x Analog Pad on the reverse side1x I2C1x UART1x SPI1 x JTAG (Pads on the reverse side)On Board1x User LED (Green)1x Charge LED (Battery Charging Indicator)1x Reset Button1x Boot Button1x UFL ConnectorAntenna2.4GHz FPC (2.9dBi) (same as used on XIAO ESP32-C3)Optional: 2.4GHz Rod Antenna (2.81dBi)Wireless Connectivity2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax)Bluetooth® 5 (LE)ZigbeeThread (802.15.4)Power InputType-C: 5V/DCBattery: 3.7VDeep Sleep（Typ.）(Low Power Firmware)USB Power Supply: 375 µABattery Power (BAT): 15 µAWorking Temperature0°C ~85°CDimensions21 x 17.8mm   Package Includes  Option 1: ESP32-C5 1Pcs 1x Seeed Studio XIAO ESP32-C51x FPC Antenna2x Pin Header Option 2: ESP32-C5 3Pcs 3x Seeed Studio XIAO ESP32-C53x FPC Antenna6x Pin Header Hardware Overview  Product details   Specification Comparison
