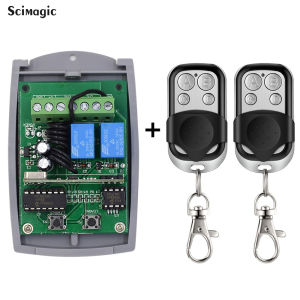

2CH & 433.92 MHz Transmitter Gate Keyfob Remote Control Garage Door Receiver 433mhz Rolling Code

This 433MHz Receiver can work for 99.9% 433MHz remote control brands on the market.Note: 433MHz = 433.92MHzReceiver SECIFICATIONS:1. Power supply: 12V-24V DC2. Frequency: 433.92Mhz 433MHz3. Codes: can work with any fixed/learning/rolling codes4. 2 channel5. Working temperature :-40℃- + 80℃6.Built in Aerial antenna : Reception range 10-100mProducts advantage:1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously. 2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls. 3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously.PROGRAMMING:Momentary working model:1. Learning transmitter’s codes:Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.• Repeat the above steps for other transmitters.2. Erasing transmitter’s codes:Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.ANT - Receiver AntennaCH1 - Relay Output 1CH2 - Relay Output 2V+ - Voltage +GND - GroundRemote Control SECIFICATIONS:1. Type of programming: Programming with the receiver2. Number of channels: 43. Frequency: 433MHz 433.92MHz4. Battery: Without batteryUses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products
