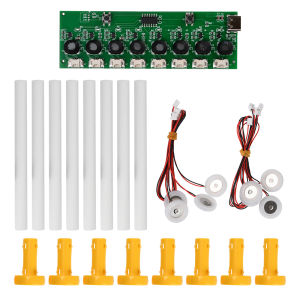

Aideepen | Humidifier Module DIY Kit Nebulizing Control Board Ultrasonic Nebulizer Mist Driver Circuit Board Interface 8 Nozzle

Features:1. Constructed with 1.2mm-thick FR-4 board for a sturdy structure and significantly extended service life.2. Powered via a Type-C port for plug-and-play convenience and enhanced safety.3. Supports a precise atomization frequency of 108kHz ± 5kHz, producing a fine and uniform mist.4. Features an eight-nozzle micro-hole atomization plate design, delivering high mist output and significantly improved humidification efficiency.5. Suitable for small humidification devices such as desktop humidifiers, car air fresheners, and smart home humidification modules.Product Specifications:Name: 8-Nozzle Atomization Driver BoardModel: 8-Nozzle Atomization Module; Infrared Remote-Controlled 8-Nozzle Module (Optional)Material: FR-4Power Connector: Type-C PortSupply Voltage: DC 5VRated Current: 2.4APower: 12WAtomization Frequency: 108 kHz ± 5 kHzModule Dimensions: 98 x 32 mm; Board Thickness: 1.2 mmAtomizer Plate Specifications:Name: Micro-hole Atomizer PlateDrive Voltage: 5VResonance Frequency: 108–110 kHz ±5Rated Power: 2WNumber of Holes: 800Hole Diameter: 4–5 µmSilicone Sleeve Outer Diameter: 20 mmO-Ring Thickness: 3 mmSteel Plate Diameter: 16 mmCable Length: 25 cmTerminal: PH1.25Product List:Set 1:1x Module8x Cotton Swabs8x Mounts8x Atomizer PlatesSet 2:1x Module8x Cotton Swabs8x Mounts8x Atomizer Plates1x Remote Control
