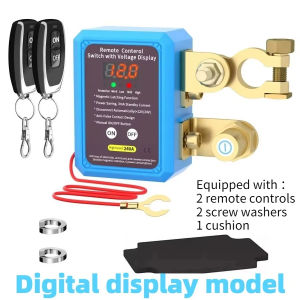

240A 12V Remote Battery Disconnect Switch Shut Off Cut Off Control Switch With Remote With Display For Car Boat ATV RV Truck

Specifications and Features1. Operating voltage range: 6–30 VDC2. Adaptive to 12 V and 24 V vehicle systems3. Automatic low-voltage alarm and automatic battery disconnection4. Frequency: 433.92 MHz, with self-locking mode5. Indicator light (lights up when connected, turns off when disconnected)6. Ultra-low standby power consumption: 700 µA7. Protection against false triggering whilst driving and during ignitionProduct Parameters1. Operating temperature: -20°C to +100°C2. Switch rated current: 250 A3. Switch inrush current: 500 A4. Low voltage protection threshold: 11.8 V ± 0.2 V / 23 V ± 0.2 V5. Low-voltage delay: 60-second warning, automatic disconnection after 120 seconds6. Standby current: 700 μANotes:1. The remote control can pair normally with the device within the operating voltage range2. Within the operating voltage range, the device can be switched on and off manually using the ON/OFF buttons3. If the supply voltage falls below 6 V or exceeds 30 V, the device will automatically shut down and disconnect4. If the supply voltage falls below the protection threshold voltage (11.8V/23.2V) for 60 seconds, an alarm will sound; if it remains below this threshold for 120 seconds, the device will automatically disconnect to protect the battery5. If the voltage exceeds 13.3V (12V system) or 26.2V (24V system), the RF remote control will become inactive to prevent accidental power loss whilst driving due to inadvertent pressing of the remote control buttons6. When the voltage range is between 6–18V, the system automatically identifies itself as a 12V vehicle system and operates according to the 12V system threshold points7. When the voltage range is between 18–30V, the system automatically identifies itself as a 24V vehicle system and operates according to the 24V system threshold points8. If the battery voltage is relatively high whilst the vehicle is in motion, the system enters a protection state against accidental triggering during driving9. If the battery voltage is relatively low when the ignition is switched on, the system enters a protection state against accidental triggering during ignitionRemote Control Pairing Instructions:1. Interlock Mode (suitable for vehicle system control) — Press and hold the manual ON button for 3 seconds; the pairing indicator will flash three times to enter learning mode. Press a button on the remote control; once pairing is successful, the indicator will flash three times. Press another button on the remote control; once pairing is successful, the indicator will flash three times;2. Once in learning mode, if no signal is received from the remote control within 30 seconds, the system will automatically exit learning mode;3. Code Clearance — Press and hold the manual ON button; the pairing indicator will flash 8 times to indicate that code clearance is complete (pressing and holding the manual ON button will cause the indicator to flash 3, 4, 5, and 8 times in sequence; where 3 flashes indicate interlock mode learning, 4 flashes indicate self-locking mode learning, 5 flashes indicate momentary mode learning, and 8 flashes indicate code clearing);4. A single set of equipment with 20 code groups can be paired with 10 different remote controls simultaneously.
