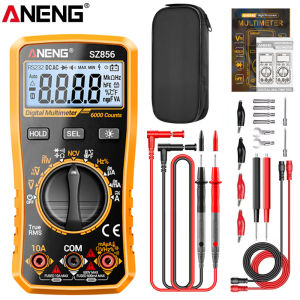

ANENG | Multimeter Digital Voltmeter Ammeter NCV Non-contact Voltage Detector ANENG SZ856 Handheld 6000 Count High Precision Repair Tool

Multimeter Digital Voltmeter Ammeter NCV Non-contact Voltage Detector ANENG SZ856 Handheld 6000 Count High Precision Repair Tool1、 Product OverviewThis manual provides all safety information and operational guidance. Information on technical parameters and maintenance instruments. This instrument is compact in structure, designed with single-chip technology, true effective value measurement technology, and full range anti burn design, especially suitable for beginners to use.This series of instruments provides digital multimeters for counting functions such as AC/DC voltage, AC/DC current, resistance, buzzer on/off, diode, non-contact voltage, etc.2、 ParameterFunctionRangeResolutionPrecisionDC Voltage0mV~600V0.1mV~1V±(1.0%+5d)AC Voltage0mV~600V0.1mV~1V±(1.2%+5d)DC Current0μA~10A0.1μA~10mA±(2.0%+10d)AC Current0μA~10A0.1μA~10mA±(2.5%+10d)Resistance0Ω~60MΩ0.1Ω~10KΩ±(1.0%+10d)Capacitance6nF/60nF/600nF/6μF/60μF/600μF/6mF(10sec)±(8.0%+5d)Hz (Hertz)10Hz~10MHz0.01Hz~10kHz±(1.5%+5d)Duty Cycle10~95%0.1%±2.0%Temperature °C/°F-40~1000°℃1℃-40°C~150°C:±(1%+4°C)150°C~1000°C:±(2%+4C）-40~1832°F1°F-40°F~302°F:±(5%+4°F)302°F~1832°F:±(2.5%+4°F)NCV√Rear Support√Continuity Buzzer√Dual Tube Anti-burnFuse2Diode Test√Battery ModelAAA 1.5VBatteries2(Without Battery)Backlight√Max Count6000 CountsData Hold√MaterialABSLow Battery Indicator√Auto Power OffAutomatically powers off after approx. 15minutes without operation.3、 Instrument maintenanceBattery and fuse replacement3.1 When the low battery symbol is displayed on the screen, you should replace the battery as soon as possible. Unscrew the screws and open the battery cover to replace the old battery.3.2The peak current of the highest input in the "INPUT" position cannot exceed 600mA, otherwise there is a possibility of burning the fuse. It is prohibited to directly test the short-circuit voltage between "10A" and COM or test the short-circuit current without load. In severe cases, it can cause the tested circuit to disconnect (trip) or damage the probe, causing harm to the user. If the fuse burns out, please use a replacement of the same specification. The SZ856 model instrument uses F750mA/600V or F10A/600V for rapid melting4、 Packaging1 * Packing box1 * Manual1 * Multimeter1 * Test pen line1 * Temperature line16 in one combination line(choose according to your own needs)5、 Warning:The parameters in this manual are subject to change without prior notice.Our company does not assume responsibility for accidents and hazards caused by user errors.
