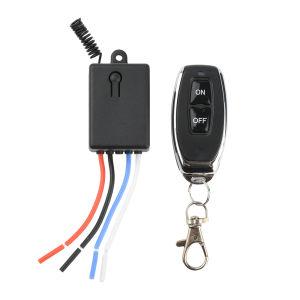

diymore | 10A DC 5-60V 433MHz RF Remote Control Switch 1CH Relay Module Receiver Transmitters ON OFF Remote Controller Electronic Kit

Features:1. Compact and easy to install: Compact design, easy to install, saves space.2. Wide voltage support: DC 5-60V, adaptable to various power supply environments.3. Wireless remote control: 433Mhz RF wireless relay, more convenient for remote operation.4. Multiple pairing modes: Supports self-locking, interlocking, point-and-press, and delay modes, flexible for various scenarios.5. Wide applicability: Suitable for switch control of devices such as lamps and motors, with a wide range of applications. Parameters:Operating Voltage: DC 5 - 60VMaximum Relay Contact Current: 10AFrequency: 433MHzControl Method: Remote ControllerProduct Size: 40 * 29.4 * 21.3mmWire Length: Approximately 6cm 1. Self-locking Mode Pairing InstructionsSelf-locking mode: The same button on the remote control can control the power on/off of the receiver's output port. Press once to turn on the output port of the receiver, and press again to turn it off.Setting method: Press the receiver button twice consecutively. The receiver indicator light remains on, and the receiver enters the pairing state. Then press the button on the remote control. After successful pairing, the indicator light goes off.2. Interlocking Mode Pairing InstructionsInterlocking mode: Two buttons on the remote control respectively control the power on/off of the receiver's output port. One button can only control the power on of the receiver's output port, and the other button can only control the power off of the receiver's output port.Setting method: Press the receiver button three times consecutively. The receiver indicator light remains on, and the receiver enters the pairing state. Then press the button on the remote control. After successful pairing, the indicator light flashes and then remains on. Press the other button on the remote control for a long time, and the indicator light goes off.3. Point-Action Mode Pairing InstructionsPoint-action mode: Press one button on the remote control to keep it on, and release it to turn off the output port of the receiver.Setting method: Press the receiver button once. The receiver indicator light remains on, and the receiver enters the pairing state. Then press the button on the remote control. After successful pairing, the indicator light goes off.4. Delay Mode Setting InstructionsDelay mode: Press the button on the remote control to turn on the output port of the receiver for a certain period of time (5s/10s/15s/20s) and then turn it off.Setting method: Press the receiver button a certain number of times (4 times for 5s/5 times for 10s/6 times for 15s/7 times for 20s) consecutively. The receiver indicator light remains on, and the receiver enters the pairing state. Then press the button on the remote control. After successful pairing, the indicator light goes off.5. Reset Setting InstructionsAfter pressing the receiver button 8 times consecutively, the indicator light flashes, the output port of the receiver turns off, and all the remote control data stored in its memory is cleared and it is restored to power-on and power-off. Packaging list:Receiver * 1Remote control * 1
