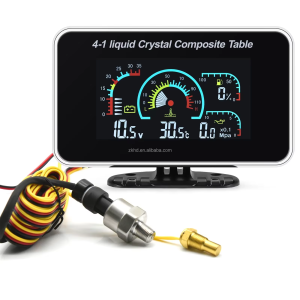

3 in 1 Universal Car 12V/24V LCD Digital Truck Car Oil Pressure Voltage Water Temperature Combination Table with 1/8 NPT Sensors

Product description:- Name: Car LCD 3 in 1Gauge(Water Temperature/Oil Pressure/voltage Gauges)- Material:Plastic Shell- Power cable length : approx.50cm- Red --- power +- (Red black) --- power -- Power Supply: DC 9V - 36V- Pressure measuring range :0.00-1.00Mpa- Accuracy:+/-1%- Measuring Oil Pressure: (0～10)*0.1Mpa When the alarm voltage is - lower than 10V, 16-20V, above 31V, the alarm will flash.- Ambient temperature: -10℃-50℃- Measurement speed: 3-5 seconds- Water temperature meter: measuring range:-10℃-110℃Sensor size :the water temperature sensor size : 10mmApplication:Suitable for Car,Motorcycle or by your need!Feature:1.With digital display, intuitive observation2.Parameter display precision and stability, low power consumption3.Easy installation, stable performance, anti vibration and anti bump4.When the alarm that is displayed flashing alarmWater Temperature sensor screw : M10Oil Pressure sensor:1/8 NPTPackage Included(as picture):1x GaugeFeatures: 3-in-1 car instrument, integrating oil pressure gauge, water temperature gauge and voltmeter, With LCD digital display, clear and easy to view It can work under ultra-wide voltage, 40V can also work normally. When the voltage is too high or too low, it will flash and alarm. It has the function of anti-shake of oil level, and it can keep normal display even if the car is bumped or the oil float is opened. With self-learning function, it can fit the oil float resistance value of any model. 9-36V working voltage, suitable for most models on the market, such as car, truck, RV, SUV, etc.

Specifications: Color: Black Material: Plastics Working Voltage: 9-36V Working Temperature: -40 - 50℃ Working Humidity: 45%-75%RH Voltage Test Range: 9-39V, Accuracy: ±0.1% Water Temperature Measurement Range: -10-120℃, Accuracy: ±0.1% Oil Test Range: 0-1.0MP, Accuracy: ±0.1%

Packing List: 1 * Car Instrument 2 * Screw
