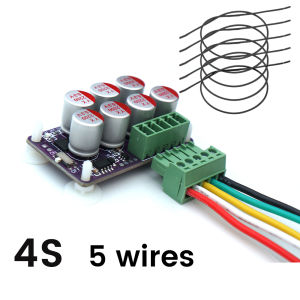

occkic | 6A Active Equalizer Whole Group Balancer Lifepo4 Lithium Active Battery Energy Transfer Equalization Capacitor 3S/4S/6S/8S/17S

Product Features:1. Multiple models, including 4S, 6S, 8S, 17S, universal for ternary lithium, lithium iron phosphate, and lithium titanate,2. Hybrid balancing simplifies the process by eliminating the need to detect voltage differences between batteries. It directly transfers energy between adjacent capacitors and connects them in high frequency equivalent parallel. The microcontroller main control is combined with low resistance MOS transistors, providing excellent low-power performance and efficient high-precision balancing effect. The long-term use of balancing accuracy can reach 0.005V-0.01V, with lower circuit power consumption.3. The operating power consumption is approximately 1.5-2.5mA, and the battery cell voltage will automatically shut down below 2.5V, or it can be manually turned off through a switch.4. The maximum equilibrium current is about 6A, and the larger the voltage difference, the greater the current. At a voltage difference of 1V, it is about 6A; at 0.5V, it is about 3A; and at 0.2V, it is about 1.2A (the above parameters are 4S power lithium batteries, matched with 10CM 0.75mm square, measured, and the voltage acquisition measurement point is the onboard plug).5. It is possible to expand the combination by selecting the appropriate module combination based on the battery series connection method. The modules can be used in series reduction or expansion, and can be used in series reduction or multi board cascade expansion. Please refer to the diagram for specific connection methods.Product Parameters:Model specifications: 3S/4S/6S//8S/17SEquilibrium method: Active equilibrium energy transferBalanced current: maximum 6A (the larger the voltage difference, the larger the current, and vice versa)Balance accuracy: 0.01VOperating power consumption: 1.5mA-2.5mALow voltage protection:Applicable batteries: ternary lithium, lithium iron phosphate, lithium titanate Applicable voltage: individual 2.5V-4.4VProduct size: as shown in the diagramCable plug: 15EDG-3.81Supporting wires: 3S/4S/6S/8S wiring length 30cm, 17S wiring length 40cm, random colorOperation indicator light:Operation indicator light. When it is on, it indicates that the system is running normally. When the light is off, it means that the battery cell voltage is below 2.5V and is in a sleep state or the switch is in a closed state. The system is completely shut down and the power consumption is 0Hybrid active equilibrium:Adjacent cells transfer energy through capacitors, and then achieve high-precision and efficient balancing effects through high-frequency equivalent parallel connection. The low-power design simplifies complexity, and the circuit does not need to detect the voltage difference between batteries. It operates for a long time to protect the voltage balance of the battery. The operating power consumption is only 1.5mA-2.5mA, and the battery cell voltage enters the sleep state below 2.5V, with a sleep power consumption as low as uALevel, protect the battery from excessive discharge.Product list:1X main circuit board1X connector plug (1007 18AWG 0.75mm)Number of wiresNotes:1. Pay attention to polarity, incorrect wire sequence or short circuit, which can cause irreversible damage to components. Please handle with caution and ensure proper insulation protection for wire circuits and wires.2. It can only be used with a lower string, pay attention to the wiring.
