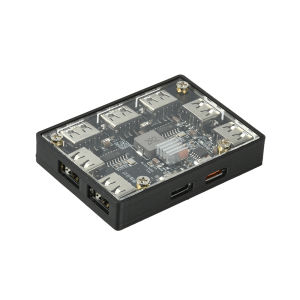

diymore | 1 to 7 Port USB 2.0 Hub USB Expansion Module With Power Supply Rechargeable Type C Power Supply Port Extender

Product Features:1. With seven USB ports for expansion, it supports multi-device connectivity, meeting daily office needs.2. The dual C-port design offers strong compatibility and supports OTG functionality for convenient use.3. Maximum support for 40W output, effortlessly driving multiple peripherals for stable operation.4. Supports deception voltage reduction function, capable of outputting stable current.5. Isolated protection design with anti-backflow and overheating protection for reliable safety.Product Parameters:Power supply method: Type - CInput voltage: 12V/3A; 9V/3AOutput voltage: 5V/8A (maximum voltage)Number of interfaces: 7Interface Type: Type C USB 2.0 PD ChargingBypass Function: QC/PD 12V BypassTemperature range: 10-40°CProduct dimensions: 72mm x 52.5mm x 13mmFunction Description:Function of USB 7-port Expander:1. Connect to the black data port to support up to seven USB devices, with one USB port expanding to seven USB ports.2. Auxiliary power supply connection can easily provide the necessary power for seven 2.5-inch hard drives.3. The dual C-port design offers better compatibility, more convenient usage, and supports OTG functionality.Multi-port charger function:After connecting the auxiliary power supply, the maximum total power output is 40W (subject to heat dissipation conditions).2. Single USB port supports a maximum power output of 15W, with internal ripple of 30mV, and is compatible with the DCP charging protocol.3. It can be fully loaded with seven USB night lights or USB fans, as well as three power banks5V 8A Deceptive Step-Down Regulator Function:The backside features +5VGND output pads, allowing direct connection for a 5V8A output.The orange C port supports a maximum input of 17V, allowing direct power input or the use of QC/PD chargers for spoofed input.R33 is the configuration resistor, with 6.8K for 9V, 24K for 12V, 56K for 15V, and must not be left open-circuited. The default is 24K.Notes:1. The data interface can also be used as a HUB with a power limit of 2.5W. It will automatically protect against over 0.5A and has reverse polarity protectionPipeline design.2. The orange C port cannot use a 5V charging head. Connect it separately to the orange port. Only the blue light indicates successful 9V spoofing. Both lightsThe lights indicate successful 12V charging, while no lights mean the charging head lacks the corresponding protocol. Simply replace the charging head.3. Power output depends entirely on the quality of the charging head and the temperature of the board, and overheating will trigger protection.Product includes:1x hub
