DC 12V 24V 48V 72V RF 433Mhz Wireless Remote Control Switch 30A High Current Relay Receiver for Pumps Lights Lamps

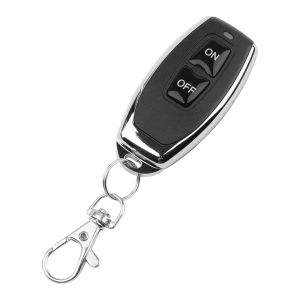

Note:Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.About Receiver:1. Working voltage: DC12V-72V2. Quiescent condition: Less than 8mA3. Working temperature: -40 Degree +80 Degree4. Receiver sensitivity: more than -105dBm5. Working frequency: 433mhz6. Output voltage: Input=output8. Max load current: 30A9. Size: 105 x51 x 30mmAbout Working way:Momentary: Relay: Press and hold -> On; Release -> Off.Toggle: Relay: Press -> On; Press same button again -> Off·Latched: Relay: Press -> On; Press other button -> Off.Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out.About Learning and clearing Method:Input 12V for the Receiver ,Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
