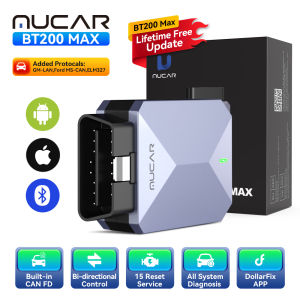

MUCAR BT200 MAX OBD2 Scanner ECM TCM ABS Full System 15 Reset CAN-FD Bi-directional Car Diagnostic Tools Lifetime update

Why Do You Need Mucar BT200 MAX OBD2 Scanner?All Softwares Lifetime Free Update(Excluding FCA)1. All System Diagnosis Lifetime Free2. 15 Reset Service Lifetime Free3. Bi-directional/Active Test Lifetime Free4. Support CANFD protocol5. Added GM-LAN,Ford MS-CAN and ELM327 Protocls6.First Al Intelligent Diagnostic System.Provide users with multi-dimensional, high-precision, industrial-gradetechnical support services.7. Work with dozens of popular third-party apps，such as Torque, BimmerCode, Dashcommand, AlfaOBD （need check compatibility)8. Support 120+ Car Brands9.Support 22 Languges:English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, ThaiFirst Al Intelligent Diagnostic SystemMUCAR BT200 Max is the first bluetooth obd2 scanner with an Al diagnostic system.Provide users with multi-dimensional, high-precision, industrial-grade technical support services.Support Active Test(BI-Directional Control) Lifetime Free:If the actuator is normal,without using the vehicle's controls,to get a significant boost in effectiveness:[Turn on the radiator fan|Modulate the throttle|Open/close windows|Operate mirrors|Turn on/off the lights|Turn on/off the sound horn|Test door lock …]Full System Diagnostic Lifetime FreeThe Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performs functional tests,retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS,SRS,Engine,Transmission,Brake System,Emission System,Fuel system,Light system,Wiper System etc.Support 15 Reset Functions Lifetime Free

1.Oil Reset

If the oil maintenance light is on, the car needs to be maintained. After the maintenance, the driving time and other data should be reset to zero, so that the maintenance light will be turned off, and the car system will enable a new maintenance cycle.

2.Brake Reset

When the brake is used to a certain thickness, the brake sensor line will be worn, and the brake pad sensor line will send a signal to the car computer to prompt the replacement of the brake pad. After replacing the brake pads, the brake needs to be reset, otherwise the car will still alarm.

3.BMS battery reset

For a vehicle with the battery management function, if the battery status is detected as faulty (aging or damaged), the fault code will saved in the ECU. After replacing the battery and running "BMS Reset", it can delete the fault code and re-match, based on the relevant information of the existing battery as the standard, let the monitoring unit monitor. Avoid false positives from instrument error messages

4.DPF(Diesel Particulate Filter) Regeneration

Diesel Particulate Filter in the working process, particles will accumulate in the filter, when it reaches a certain value, it will lead to engine power and economic performance decline, must be removed in time to ensure that DPF continues to work normally.

5.SAS Steering Angel Reset

After the vehicle is disassembled or replaced with parts related to the steering function, the steering Angle learning function needs to be performed.

6.TPMS Tire Pressure Resetonly applicable to vehicles without a tire pressure sensors.

if the tire pressure is too low or air leaking, replacing or installing tire pressure monitoring equipment, replacing tires, tire pressure sensor damage, and cars with tire pressure monitoring function in the case of tire transposition etc,.Tire pressure reset is required after vehicle maintenance and turn off the tire pressure fault indicator light.7.IMMO Key matching

When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.

8.ABS Bleeding

In the case of replacement of ABS system, ABS pump, brake pump, brake line and brake fluid, it is necessary to bleeding the ABS system through the ABS bleeding function.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

When the body height sensor or control module in the air suspension system is replaced, or the car level is wrong, the vehicle needs to perform this function to adjust the body height sensor for level calibration

11.Gearbox (Transmission )Reset

When the transmission parts wear and aging become serious, the adaptive learning of the control unit does not work, and the parts need to be repaired and replaced, then the automatic transmission control unit needs to be forced to learn.

12.AFS Headlamp Reset

This function can initialize the adaptive headlight system. The adaptive headlight system can decide whether to automatically turn on the headlights according to the ambient light intensity, and monitor the vehicle's driving speed, body attitude, etc., and timely adjust the lighting Angle of the headlights. When replacing a new headlight, headlight automatic motor, or there is a fault code that is not set by the headlight, it is necessary to perform headlight matching features.

13.Injector Coding

After replacing the ECU or injector, each cylinder injector needs to be coded to confirm or recode. So that the cylinder can better identify each cylinder injector, accurate control of fuel injection.

14.ETS Learning(throttle matching)

Need to perform throttle matching: Replace the electronic control unit, power off the electronic control unit, replace the electronic throttle assembly, replace or disassemble the intake port, clean the throttle.15.EGR Self-Learning

If the EGR fails, the engine/EPC fault indicator light of the vehicle instrument will light up, and the EGR self-learning function can turn off the fault indicator light after cleaning or replacing the EGR valve.Support FCA account unlocking SGWNote: FCA AutoAuth Access not free!!There is an annual fee for Autoauth account, but the payment is charged by AutoAuth directly. THINKCAR & MUCAR is not involved in any transaction process.Chrysler is a car owned by FCA and is equipped with an SGW (Security Gateway) module. Only through FCA system certification can the SGW be unlocked and access advanced diagnostic functions.THINKCAR has cooperated with FCA. You only need to purchase AUTHENTICATED DIAGNOSTICS of FCA on the THINKCAR official website, and you can directly use THINKCAR device to diagnoseChrysler (Included brands Abarth, Alfa Romeo, Chrysler, Dodge, Fiat, Fiat Professional, Jeep, Lancia, Maserati, and Ram Trucks) vehicles using advanced diagnostic functions.Some vehicles may need to unlock the gateway to use other special functions such as reset. To unlock the gateway, you need to purchase a separate FCA account. The above are some common vehicle brands that may require unlocking the gateway, for reference only.Please check the vehicle gateway issue.Lifetime free All 10 Mode OBDII/EOBD FunctionsSupported models: compatible with all models support OBD II protocol after 1996

support protocol:ISO 14230-4(KWP2000)IOS 15765-4(CAN)ISO 9141-2(IOS)ISO14229(UDS)SAEJ 1850(VPW&PWM)"

Mode 1:Read live data stream

Mode 2:Read freeze frame data

Mode 3:Read DTCs(diagnostic trouble codes)

Mode 4:Clear dtcs

Mode 5:Oxygen sensor monitoring

Mode 6:System monitoring

Mode 7:Read pending DTCs

Mode 8:Control operation of on-board system

Mode 9:Read vehicle information

Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.Support 22 LanguagesEnglish, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai Diagnostic Cover Most of Vehicles That Support The OBDII Protocol After 1996.

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for Volkswagen

For Asian

Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United PakistanJapanese cars compatible with JOBD protocol are not supportedSupport CAN-FD ProcotolGM: CANFD Model

[2021][Chevrolet][Onix]CANFD6&14

[2021][Chevrolet][Tracker]CANFD6&14

[2021][Chevrolet][Suburban]CCMA

[2021][Cadillac][Escalade ESV]CCMA

[2021][Cadillac][Escalade]CCMA

[2021[GMC][YUKON XL]CCMA

[2021[GMC][YUKON]CCMA

[2023][Chevrolet][Montana]CANFD6&14

[2024][Buick][Electra E5]VSIM

[2024][GMC][Sierra] H/UTCM 10 Speed (MGM)/10 Speed (MGU)

[2021][Chevrolet][Onix]

[2021][Chevrolet][Tracker]

[2021][Chevrolet][Suburban]CCMA

[2021][Cadillac][Escalade ESV]CCMA

[2021][Cadillac][Escalade]CCMA

[2021[GMC][YUKON XL]CCMA

[2021[GMC][YUKON]CCMA

[2023][Chevrolet][Montana]

[2024][Buick][Electra E5]VSIM

[2024][GMC][Sierra] H/UTCM 10 Speed (MGM)/10 Speed (MGU)Support Mobile Phone&Tablet ComputerAndroid:8.0 aboveIOS:11.0 above

MUCAR BT200 MAX is suitable for Mobile phones,tablet computer that meet the above version information.When the BT200 is connected to the car,you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 5.0 and APP.DollarFix APP and Other Third-Party Apps ：MUCAR BT200 Max works with dozens of popular third-party apps such as"OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand,GaragePro,OBD Auto Doctor,OBD JScan,Dr. Prius,MotorData,AlfaOBD".With third party apps, you can enable convenience features (including remote start and door lock/unlock) and change configuration on select models. Note: many apps are currently available exclusively on Android; check with app provider to confirm compatibility.Read Live Data StreamReal-time data is visualized in a variety of formats, including graphs, numeric, meter displays and clear 4-in-1 data charts, allowing you to effortlessly monitor real-time performance. Data logging/reporting is available for playback and further analysis.Intelligent Auto VINWith intelligent AutoVIN quick recognition, it is easy to connect to your car without the need for manual inputHow to use MUCAR BT200 MAX?Download and install the APK ”Dollarfix” in Google Play or your smartphone and sign up for a new account And log in.Activate the device in APK ”Dollarfix”,binding serial number;Plug the MUCAR BT200 MAX dongle into the vehicle’s 16pin OBD2 Data Link Connector and then turn on your vehicle.Tap Me/Setting button of your device to bluetooth pair the MUCAR BT200 Max with your device.Start to diagnostic your car.
