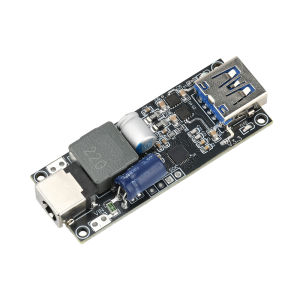

diymore | DC6-30V 100W Fast Charging Module Compatible With PD100W QC4+ PE2.0 Car Desktop Charger Motherboard USB A USB C 5V 2A

Features:1. Support multi-protocol fast charging, compatible with PD100W, QC4+, PE2.0 and other mainstream standard protocols2. Support fast charging when single output, 5V2A when dual-port simultaneous use, to meet basic needs3. Built-in multiple protection mechanisms to ensure the safe and stable operation of the input and output4. High-efficiency step-down design, greater than 21.2V to achieve full power 100W output5. Compact motherboard design, easy to use in the car or desktop, to meet the needs of diverse scenariosParameter:Product name: 100W fast charging moduleInput voltage: DC 6-30V (24V DC power supply is recommended)DC interface size: 5.5*2.5(5525)Output Interface: USB A and USB CInput and output type: only support output (battery power is not recommended)Protection mechanism: input over-voltage protection, input under-voltage protection, output over-current protection, output short-circuit protection, on-board integrated chip thermistor, equipped with fuses to ensure safe operationSupport protocols:1.Support PPS/PD3.0/PD2.02.Support QC4+/QC4/QC3.3/QC2.03.Support PE2.0/PE1.14. Support AFC/FCP/SFCP5. Support VOOC (generation) maximum 22.5WOutput power problem: the module because it is a buck module, the output should be greater than the input 1.2V. because 100w is PD protocol 20V5A, so only greater than 21.2V, can be full power output. 24V power supply is very cost-effective, so we recommend 24V power supply.Battery power problem: about battery power: the module can only output can not charge the battery, if only battery power can be, need to use 24v battery pack. If the car 12v, 12v can not be full power, pd protocol maximum 36w, only charge the phone is no problem.A port and C port output at the same time problem: single way A port and C port can output at the same time, but there is no fast charging, when output at the same time is assigned as 5V2A/5V2A.Package include:Module x1
