VANEAIMS KTO011 KTS011 Mechanical Cabinet Thermostat 35mm DIN Rail NO NC Heating Cooling Fan Temperature Controller 250VAC 10A

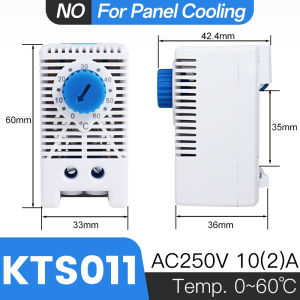

Description Single control NO normally open type· Product Model: KTS011 (for panel cooling)· Temperature range: 0~60°C / -20~40°C / 20~80°C / -10~50°C· Product Size: 333660mm· Switching capacity: 250VAC, 10(2)A [Resistive load: 10A; Inductive load: 2A.]· Material: PC flame retardant material· Feature: 35mm Din rail Mounting Type· Application: Control fan or switch signal device· Working Principle:· When the indoor temperature is lower than the temperature set by the thermostat, the circuit will be disconnected and the equipment will stop.· When the indoor temperature is higher than the temperature set by the thermostat, the circuit will be connected and the device starts.Single control NC Normally Closed type· Model No: KTO011 (for panel heating)· Temperature range: 0~60°C / -20~40°C / 20~80°C / -10~50°C· Product Size: 333660mm· Switching capacity: 250VAC, 10(2)A [Resistive load: 10A; Inductive load: 2A.]· Material: PC flame retardant material· Feature: 35mm Din rail Mounting Type· Application: Heater control· Working Principle:· When the indoor temperature is lower than the temperature set by the thermostat, the circuit will be connected and the device will start.· When the indoor temperature is higher than the temperature set by the thermostat, the circuit will be disconnected and the device will stop.Installation Recommendations· The product's work switching generates a certain degree of error (± 5~10℃)· KTO011 Red Knob: The thermostat activates when the temperature falls below the set value; it deactivates only when the temperature rises approximately 5~10°C above the set value.· KTS011 Blue Knob: Activates when the temperature exceeds the set value; deactivates when the temperature drops approximately 5~10°C below the set value.Buyer's NoticeThis thermostat is mechanical and operates without requiring an external power supply. The output voltage matches the input voltage applied to it. For high-power applications or multi-line voltages like 380V, it can be used with a 220V AC contactor for power conversion.
