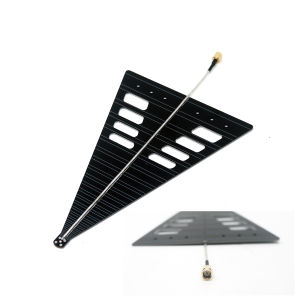

Log Periodic Antenna 950M-7.5G UWB Directional Antennas 1090M 1.2G 1.5G 2.4G 5G 5.8G WiFi Aerial SAM RF POWER Amplifier Amateur

950MHz-7.5GHz Ultra-Wideband Log Periodic Antenna | UWB Directional Antenna | 6-7dBi Gain 1090Mhz 1.2Ghz 1.5Ghz 2.4Ghz 5Ghz 5.8Ghz 2.4Ghz 5Ghz 5.8Ghz Antennas Receiver transmitter antennaBefore purchasing Please refer to the advertising test video We all use professional spectrometers for testingProduct DescriptionProfessional ultra-wideband log periodic antenna covering 950MHz to 7.5GHz frequency range. This directional antenna provides consistent 6-7dBi gain across its entire operating bandwidth, making it ideal for UWB applications, spectrum analysis, direction finding, and broadband signal measurement. With excellent VSWR characteristics and compact 200×140mm profile, it's perfect for both laboratory and field applications.Key FeaturesExtreme Bandwidth: 950MHz to 7.5GHz continuous coverageConsistent Gain: 6-7dBi across entire frequency rangeExcellent VSWR: ≤2:1 typical across operating bandStandard Compatibility: 50Ω impedance matchingCompact Design: 200×140×2mm planar constructionRobust Connector: SMA male (plug) interfaceTechnical SpecificationsFrequency Range: 950MHz - 7,500MHzImpedance: 50Ω nominalGain: 6-7dBi (typical across band)VSWR: ≤2:1 (950MHz-7GHz)Polarization: LinearDimensions: 200×140×2mm (L×W×H)Connector: SMA male (plug, pin center)Radiation Pattern: Directional, end-fireOptimized Frequency Points1090MHz: ADS-B aircraft tracking1.2GHz: Satellite and positioning systems1.5GHz: GPS L1 band, satellite communications2.4GHz: WiFi, Bluetooth, ISM band applications3.6GHz: 5G NR, WiMAX, fixed wireless5.2GHz: WiFi 5/6 upper band5.8GHz: WiFi, FPV video, ISM bandPerformance CharacteristicsBroadband Efficiency: Maintains performance across decade bandwidthPhase Stability: Consistent phase center for measurement applicationsLow Dispersion: Minimal pulse distortion for UWB applicationsTemperature Stability: Performance maintained across environmental conditionsApplicationsUWB Systems: Ultra-wideband communication and radarSpectrum Analysis: Broadband signal monitoring and measurementDirection Finding: Signal triangulation and location trackingEMC Testing: Electromagnetic compatibility measurementsSignal Intelligence: Broadband signal collection and analysisResearch & Development: Laboratory testing and prototypingWireless Testing: Multi-band device verificationInstallation GuidelinesOrientation: Mount with elements parallel to ground for horizontal polarizationClearance: Maintain minimum 1λ clearance from reflective surfacesConnection: Secure SMA connection with proper torque (typically 8-10 in-lbs)Mounting: Use non-conductive supports to minimize pattern distortionPackage IncludesLog periodic antenna unitPerformance NotesGain Variation: Typical 1dB variation across frequency bandBeamwidth: 60-90 degrees in E-plane, 60-120 degrees in H-plane
