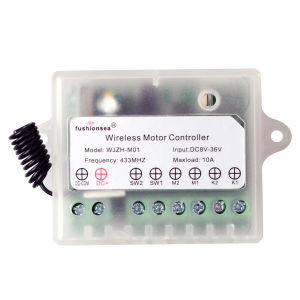

12-36V DC Motor Remote Control Switch For Tractable Door Coarse Electric Push Rod Linear Actuator Forward Reverse Receiver

Note: Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.About Receiver:Model No.: WJZH-M011. Working voltage: DC8-36V2. Quiescent condition: Less than 8mA3. Working temperature: -40 Degree +80 Degree4. Receiver sensitivity: more than -105dBm5. Working frequency: 433mhz6. Function: Limit & Wire External Button(If travel switch is needed, please use normally open type switch)8. Max load: 10A9. Size: 68 x 44 x 25mmManual control (default momentary):Momentary: The MD soldered dot on the receiver don't need to be connected. Press and hold the external K1 button motor will forward. and the motor stops after Release the button. Press and hold the external K2 button, the motor reverses, and the motor stops after Release the button.Latched: The MD soldered dot on the receiver need to be connected. Press the external K1 button motor will forward. and the motor stops after press the external SW1 Limit switch. Press the external K2 button, the motor reverses, and the motor stops after press the external SW2 Limit switch. About Working way:Working way changed by learning button on the ReceiverMomentary: press and hold the transmitter button up,motor forward.Release the button,motor stop.press and hold the transmitter button down ,motor Reverse.Release the button,motor stop.Latched: press the transmitter button up once,motor forward, press the transmitter button stop,motor stop.press the transmitter button down once, motor reverse, press the transmitter button stop,motor stop. About Learning and clearing Method:Learning: Momentary: Press learning button once, the indicator flash once and ON , Then press the transmitter button up (first button default for forward) ,the learning indicator flash 3 times and ON,Then press the transmitter button down (second button default for Reverse) ,the learning indicator flash 3 times and OFF, It mean the Momentary model learning SuccessfullyLatched: Press learning button 2 times, the indicator flash once2 times and ON , Then press the transmitter button up (first button default for forward) ,the learning indicator flash 3 times and ON,Then press the transmitter button stop (second button default for stop) ,the learning indicator flash 3 times and ON again, Then press the transmitter button down (third button default for Reverse) ,the learning indicator flash 3 times and OFF, It mean the Latched model learning SuccessfullyClearning: Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared.
