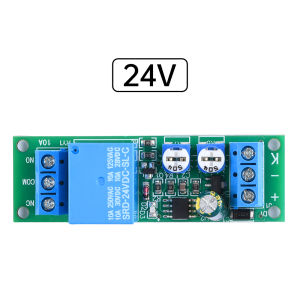

DC 5V 12V 24V Delay Open Delay Close Trigger Dual Delay Adjustable Relay Module Trigger Delay Relay Module (Delay On+Delay Off)

Product Features:1. Three voltage options available: 5V, 12V, and 24V DC. Select the appropriate DC voltage based on your needs.2. Easy to operate and features reverse polarity protection; the module will not function if the positive and negative terminals are connected incorrectly.3. Two adjustable delay times: 0–100 seconds and 0–15 minutes.4. Two adjustable on-time durations: 0–10 seconds and 0–100 seconds.5. Versatile applications, including computer startup, equipment control, and signal delay.Product Specifications:[Name] Triggered Delay Relay Module (Delayed On + Delayed Off)[Function] No action upon power-on; after triggering, it remains off for delay T1, then turns on for T2, and finally turns off.[Voltage] (DC) Available in three specifications: 5V, 12V, and 24V[Operating Current] 90mA (5V), 40mA (12V), 30mA (24V)【Standby Current】6mA (measured at 12V)【Delay Range】T1 (Delay Duration): Two settings: 0–100 seconds and 0–15 minutesT2 (On Duration): Two settings: 0–10 seconds and 0–100 seconds【Adjustment Precision】0.1 seconds[Output Type] Switching type; one set of normally open and normally closed relays; passive output (i.e., the contacts are electrically isolated from the module’s power supply)[Output Capacity] Normally open contact: 15 A; normally closed contact: 10 A; capable of controlling 0–30 V DC or 0–250 V AC.[Dimensions] 65 × 21 × 19 (mm)【Operating Temperature】 -40 to +85°C【Operating Humidity】 0–90% RH, non-condensing【Reverse Polarity Protection】 This module features reverse polarity protection; it will not operate if the power supply’s positive and negative terminals are connected incorrectly.【Permissible Voltage Deviation】5V modules are permitted to operate between 4.6V and 6V;12V modules are permitted to operate between 10V and 16V; relays should not be operated at high temperatures for extended periods;24V modules are permitted to operate within the range of 20V to 30V.【How to Wire?】Connect “+” and “–” to the corresponding positive and negative terminals of the power supply.“K” is the trigger input; connect an external switch to “–”. When K and “–” are connected, a single trigger is generated.NC, COM, and NO are the normally closed, common, and normally open terminals of the relay, respectively.Product List:1x Module
