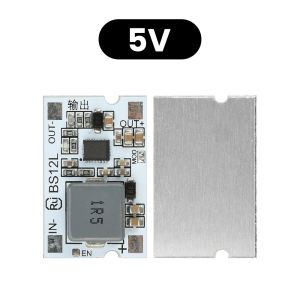

Aideepen | Mini Size DC-DC Boost Converter Board Step Up Module 2.7-11V to 5V 12V 10A with Short-Circuit Over-Temperature Protection

Product Features:1. This module supports an input voltage range of 2.7V to 11V and is suitable for various power supply application scenarios2. Using aluminum substrate, it has good heat dissipation and is also convenient to add heat sinks, resulting in higher efficiency3. Optional output voltage of 5V or 12V to provide suitable power supply voltage for different devices4. Built in short-circuit protection mechanism to ensure the safety of modules and connected devices in case of abnormal conditions5. The mini size design makes the module easy to integrate into various electronic devices, saving spaceProduct Parameters:Working voltage: DC 2.7-11VOutput voltage: 5V/12V (optional)Frequency: 500K-1MHzInput/output with TVSOutput short circuit protectionBuilt in over temperature protectionDefault PFM low power consumption-40℃+125℃Kind Reminder:When the input voltage of the module is too low, the output power cannot be fully utilized, especially when powered below 3V. Users who require high power output should pay attention when using it2. The MAX switch current of the module is 10A, and users are required to leave room for use within 9A. The output current is determined by the input parameters, and the input current should not exceed 9A. The efficiency is calculated at 70% (leaving room). The formula is used to calculate the MAX output current value of the module: out=Vin * 6.3/Out3. The PWM short-circuit pad on the output terminal is short circuited in PWM mode, disconnected in PFM mode, and defaults to PFM mode. Users can adjust it themselvesPackage List:Module * 1 (optional style)
