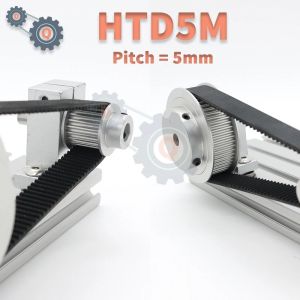

HTD 5M Timing Pulley 40Teeth 42Teeth 44Teeth 45Teeth 46Teeth 48Teeth HTD5M Belt Pulley 40T 42T 44T 45T 46T 48T HTD5M Timing Belt

The above is the dimension diagram of HTD5M pulley. The parameters may vary slightly due to different batches of production, but it does not affect its use.Attention: If the above inner holes and widths cannot meet your needs, you can contact us for customization. We will manufacture the pulleys you need according to your requirements to ensure quality and transportation.Product Parameter【Product Name】: HTD 5M Timing Pulley【Product Type】:BF-type,Belt Pulley【Product Material】: aluminum alloy【Pulley Tooth Pitch】: 5mm【Applicable Belt Width】: 15mm,20mm【Number of Teeth】:40teeth,42teeth,44teeth,45teeth,46teeth,48teeth【Bore】: 5/6/8/10/12/12.7/14/15/16/17/18/19/20/22/24/25/28/30mm【Bore（keyway）】: 8mm keyway 3x1.4mm/10mm keyway 3x1.4mm/12mm keyway 4x1.8mm/12.7mm keyway 5x2.3mm/14mm keyway 5x2.3mm/15mm keyway 5x2.3mm/16mm keyway 5x2.3mm/17mm keyway 5x2.3mm/18mm keyway 6x2.8mm/19mm keyway 6x2.8mm/20mm keyway 6x2.8mm/22mm keyway 6x2.8mm/24mm keyway 8x3.3mm/25mm keyway 8x3.3mm/28mm keyway 8x3.3mm/30mm keyway 8x3.3mmOur store is a supplier that you can fully trust and cooperate with for a long time. If you need to place bulk orders, you can get greater discounts and a good purchasing experience. Yes, let's talk about our collaboration!Qdong Conveyor StoreNO1. Our store sells various synchronous belts and synchronous wheels. They are usually classified by length. You can search for the product you need in the product category based on the model and length. If the products in the store cannot meet your needs, please contact our store, and we can find the products you need. All products undergo quality testing before sale, so you can purchase with confidence.NO2.  If you encounter any problems during the purchasing process, you can contact our store at any time. Our store will reply to your question as soon as possible and provide you with professional advice and solutions. After you submit your order, you will receive high-quality after-sales service from our store, ensuring the high quality and safe logistics transportation of the goods.NO3.  If you are satisfied with our products and services, then your satisfaction and positive feedback are very important to our store and other customers. Please leave positive feedback and a 5-star rating. If you have any dissatisfaction with our products or services, please contact us before leaving negative feedback. Our store will make every effort to solve any problems and provide you with the best customer service.
