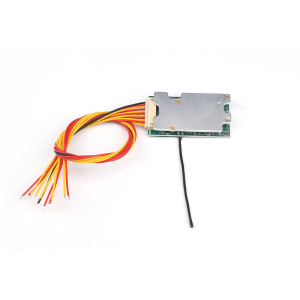

occkic | BMS 10S 36V 30A Lithium Battery Charge Board PCB 18650 Battery Balanced Protection Board Li-ion Cell Balancer for Electric Car

Same port Product feature:1. Use high-quality materials that are durable and long-lasting2. High power discharge, maximum 30A discharge3. Temperature control protection, safe and reliable4. Equipped with overcharge protection; Overdischarge protection; Overcurrent protection; Output short circuit protection5. Widely applicableparameterModel: 10 series 36V/30A same portApplicable voltage and power: 36V ＜ 1000WApplicable battery type: 3 7V ternary battery lithium cobalt oxide lithium manganese oxide batteryMaximum operating current: 30A MAXContinuous working maximum current: 20A MAXOver discharge protection voltage: 2.6VOvercharge protection voltage: 4.25VCharging current: 20AMAXBalanced charging function: With this function, the balanced voltage is 4.2VTemperature protection: With this function, discharge at high temperature of 75 ° C; charge at low temperature of -7 ° CApplication areas: electric vehicles; swing car; Electric power assisted vehicle; Scooter; Inverter, etcWiring steps:(1) Connect the collection cable to each section of the battery to ensure effective connection of the cable.Ensure that the potential of the cable plug end increases or decreases in sequence.The potential sequence is consistent with the potential sequence of the socket on the protection board end, and the potential corresponds one-to-one.(2) Weld the B-lead of the protective board to the total negative B-of the battery pack.Ensure that the welding points are firm, reliable, and have good conductivity, and that there are no potential hazards such as compression or friction in the routing position. The routing should be smooth and short.Avoid soldering, conductive objects or leads falling, sticking or coming into contact with the protective board.(3) Connect the plug of the ribbon cable to the socket of the protective board.First, it is necessary to weld the B-lead of the protective board to the total negative B-of the battery pack, and then connect the plug of the ribbon cable to the socket of the protective board,Ensure that the cable plug is properly connected to the socket of the protective board, with no live objects or leads coming into contact with the protective board, and take appropriate fixing measures.(4) B+and c are respectively connected to the positive and negative terminals of the charging interface.Ensure that other leads are properly isolated during the welding process to avoid short circuits.The battery pack voltage for testing the dynamic interface and charging interface is consistent with the battery pack voltage, the polarity is correct, and the wiring position is correct.Notes:When wiring, do a good job of anti-static, waterproof, and dustproof work; During use, avoid the occurrence of the protective plate being hit and squeezed.Please pay attention to the output power when configuring the size of the nickel sheet;Be careful not to continuously short-circuit P+P - repeatedly, as it may cause voltage spikes in the circuit, which can lead toCausing damage to MOS transistor;Be careful not to let the protective board touch water, as it may be damaged easily!5 welding boards, please pay attention to anti-static operation!Package List:Lithium battery protection board * 1Sensor line * 1Features:1.Overcharge protection2.Overdischarge protection3.Overcurrent protection4.Compact size5.Easy to operateSplit portParameters:Model: 10 series 36V/30A split portApplicable voltage and power: 36VApplicable battery type: 3.7V ternary battery, lithium cobalt oxide lithium manganese oxide batteryFunction description: Lithium battery - overcharge protection; Overdischarge protection; Overcurrent protection; Output short circuit protection.Maximum working current: 40AMAXContinuous working maximum current: 25A MAXOverdischarge protection voltage: 2.6VOvercharge protection voltage: 4.25VCharging current: 10A MAXBalanced charging function: With this function, the balanced voltage is 4.2VApplication field: Electric vehicles; Twisting car; Electric moped; Kick scooter; Inverters, etcExternal dimensions: length 64mm * width 35mm * thickness 9mmUnit weight: 60gWiring steps:(1) Connect the collection cable to each section of the battery to ensure effective connection of the cable. Ensure that the single potential at the plug end of the cable increases or decreases in sequence. The potential sequence is consistent with the potential sequence of the socket at the protection board end and corresponds to -.(2) Weld the B-lead of the protective board to the total negative B - of the battery pack.Ensure that the welding points are firm, reliable, and have good electrical conductivity. There are no potential hazards such as squeezing or friction in the wiring position, and the wiring is smooth and short. Avoid solder, conductive objects, or leads falling into, sticking to, or coming into contact with the protective plate.(3) Connect the plug of the ribbon cable to the socket of the protective board.First, complete the welding of the B-lead of the protection board to the total negative B-lead of the battery pack, and then connect the plug of the cable to the socket of the protection board,Ensure that the connection between the cable plug and the socket of the protection board is in place, without any live objects or leads coming into contact with the protection board, and take fixing measures.(4) B+and c - are connected to the positive and negative terminals of the charging interface, respectively.Ensure that other leads are properly isolated during the welding process to avoid short circuits.The battery pack voltage tested for the discharge interface and charging interface is consistent with the battery pack voltage, with correct polarity and wiring position.Package include:1 * Protection board
