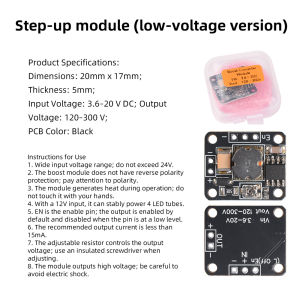

Aideepen | Mini Boost Step Up Module DC-DC Power Module High Voltage Module DC 3.6-20V to 120-300V/150-500V for High-Voltage Power Supply

Product Features:1. Input voltage range: DC 3.6-20V, meeting the needs of different devices2. High voltage optional: Output supports 120-300V or 150-500V (model differentiation)3. Ultra small size: Mini exterior design, friendly embedding, flexible adaptation to various power scenarios4. Optimize circuit design: adopt high-efficiency boost technology with strong reliability5. Wide applicability: Suitable for DIY production of various high-voltage power supplies, small ion generators, etcProduct parametersInput voltage: DC 3.6-20VOutput voltage: DC 120-300V; DC 150-500V (optional specifications)Size: 20mm x 17mmProduct thickness: 6.95mmPacking ListModule * 1usage method:1. Wide voltage input, the input voltage should not exceed 24V.2. The boost module has no input reverse protection, pay attention to polarity.3. The module will generate heat during operation, please do not touch it with your hands.When inputting 4.12v, it can stably carry 4 tubes.5. EN is the enable pin, with the output turned on by default and turned off when low.6. It is recommended that the output current be less than 15mA.7. The adjustable resistor is used to adjust the output voltage. Please use an insulated screwdriver when adjusting.8. The module has high voltage output, be careful of electric shock.
