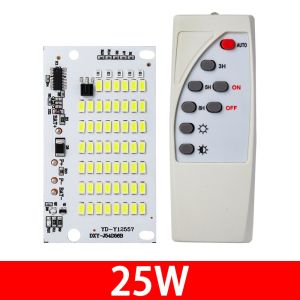

NOBLELYN 1Pcs White Light LED Solar Light Board SMD5730 25/40/60/100/250W Light Source Panel with Remote Controller Remote Control Floodlight For Outdoor Garden Lamp

Power: 25W 40W 60W 100W 250W Material: PCB board Voltage: DC3.2V Lumens: 70lm/w Brand new and high quality. Quantity: 1PcsLong lifespan: 50000 hours Lighting Color: Warm white(3000K) /White (6000K) Size: as shown LED Chips: SMD5730 Application: widely use in lawn lamp, street lamp, garage lamp, landscape garden lamp, advertising lamp, engineering lamp and other outdoor lamps Features:

1. The lamp is ECO-friendly and safe for your family.
2. Super long life span of the solar panel, max up to 15 years
3. Wireless solar charging, more convenient to use
4. Made of high quality material, durable for daily use.
5. With remote, you can control the chip by remote controller

Precautions:

1. Upon first power-on, it will dimly light up for 5 seconds, then illuminate at full power. The remote control can be used to turn it off normally.

2. Indicator light descriptions: D1 (green) indicates solar panel power. D2, D3, D4, and D5 indicate battery level. Flashing D2-D3 indicates high battery (50%-100%). Flashing D4-D5 indicates low battery (0-50%).

3. Wiring instructions: "BAT+" - Battery positive, "BAT-" - Battery negative, "P-" - Solar panel negative, "P+" - Solar panel negative. For automatic and cycle lighting, a solar panel must be connected.

4. Night mode can be activated by pressing 3H, 5H, 8H, AUTO, ON, 100% brightness, and 50% brightness. After a brief flash, the light will activate the power reduction mode.

Stage 1: 100% for 10 minutes Stage 2: 90% for 20 minutes Stage 3: 80% for 30 minutes Stage 4: 60% for 60 minutes Stage 5: 40% for 120 minutes Stage 6: 30% for 60 minutes Stage 7: 20% Without light control, the light will remain on at 20% power until the battery is depleted.

5. During daytime charging mode, press ON or AUTO. All buttons will only be effective after a brief flash. OFF turns the device off normally. Pressing 3H, 5H, 8H, 100% power, or 50% power individually will have no effect.

Notice:

1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.

Package Included: 1x Light Bead Board 1x Remote Controller
