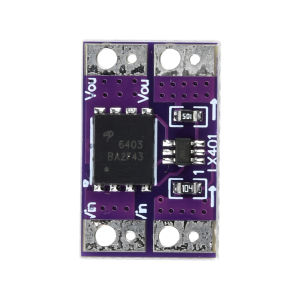

10A Ideal Diode Module Solar Charging Backflow Prevention Low Internal Resistance Analog Rectifier 3-26V

Product Features1. Supports a wide voltage range of 3-26V, suitable for various solar charging and power management systems2.10A high current output capability, efficiently and stably meeting the operational needs of high-power equipment3. Adopting a low internal resistance design to reduce energy loss and improve overall charging efficiency4. Equipped with a backflow prevention function, it effectively prevents reverse current flow, safeguarding the safety of batteries and equipment5. The simulated rectifier function replaces traditional diodes, reducing heat generation and enhancing system reliabilityProduct Parameters:Operating voltage: 3V-26VOperating current: 12V, 25℃ without heat dissipation measures ≤10A (tested for 30 minutes)Static current: 130uA (12V no-load)Positioning method: welding and fixingNotes:1. The module must be used with a common ground. There is no reverse polarity protection for the input terminal, so it cannot be connected reversely2. The module is small in size, so be sure to pay attention to heat dissipation when operating with high current3. This module is used for preventing backflow at the output terminal and cannot replace the freewheeling diode in a switching power supplyWhen operating at a low voltage of around 4.3V, the internal resistance of the module tends to be high, so the allowable current is less than 10A5. The minimum voltage drop of the module is approximately 53mv6. Since the module is not a true diode, to avoid the impact of extremely short peak pulses, a large capacitor and a zener diode with a matching voltage should be added to the output module7. Avoid using it in situations where the voltage difference at the input terminal is too large when the outputs of two boards are short-circuited8. If there are voltage pulses of us level or smaller in the voltage, the voltage at the module input terminal will experience a small increase. In practical testing, a 26V input with a 10us pulse will approximately raise the input terminal voltage by 100-200mvPacking ListIdeal diode module *1
