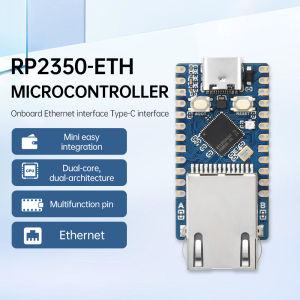

RP2350-ETH Microcontroller Development Board Based On Raspberry Pi Rp2350 Onboard Ethernet Interface Type-C Port Module

Features:1. This RP2350-ETH is developed based on RP2350 and comes with an onboard ETH interface, making it easy to use.2. Built in 4MB onboard Flash, mini and easy to integrate, supports C/C++, MicroPython, and other development environments, and supports multiple communication modes.3. Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, both running at a flexible clock frequency of up to 150MHz.4. Comes with TYPE-C interface, which can be recognized as a large capacity storage device through USB for drag and drop download of programs.5. Small in size and easy to integrate, designed with stamp hole gold sinking technology, highly integrated packaging, supporting multiple ways of embedding and combining into various product applications.Parameter:Adopting RP2350 microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, with a running frequency of up to 150MHz flexible clockBuilt in 520KB SRAM and 4MB on-chip FlashOnboard CH9120, integrated TCP/IP protocol stackIntroduce 14 GPIO, compatible with some Pico expansion boardsStamp hole design, can be directly welded and integrated into the user's self-designed base plateCan be recognized as a large capacity storage device through USB for drag and drop download of programsEquipped with temperature sensor inside the chip12 programmable I/O (PIO) state machines for custom peripheral supportVoltage regulator chip LDO 800mACompact in size, with dimensions of only 45.8mm * 21mmPackage include:1X development board
