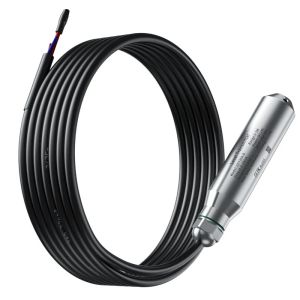

Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter

Product overview:QDY30A water level sensorRange:0-0.5m-500m range can be customizedOutput signal:4-20mA /0-10V /0-5V /RS485Power supply: Default DC24V (DC12-36V can be used,0.5-4.5V /0-3.3V output ,power supply is DC5V)cable length(Defult ):5mOEM logo design is acceptable , MOQ 5 pcs !!!bulk orders please contact ::sales012@qd-zdk.com :+86 18256197591 Introduction.QDY30A submersible Water Level Sensor, its304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils.. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.Technical parametersModelQDY30A liquid water level sensorMeasuring Range0~0.5~500m H2OPower supply24VDCOutput Signal4~20mAAccuracy0.5%FSResponse Time≤1ms (up to 90%FS)Long-term Stability±2F.S/YearMedium Temperature-20~85℃WorkingTemperature-40~80℃Overload Capacity200%F.SInsulation Resistance100MΩ/250VDCSensitivity Drift±2%F.SZero Drift±2%F.SProtectionIP68Measuring MediumVarious medium which is compatible with SS304Mechanical Vibration20g (20~5000Hz)Impact100g (11MS)MaterialJunction: Low content Cu-Al alloyProbe: Stainless steelCable: Polyurethane cableApplicationStatic liquid level, Liquid tank, Sewage water, Well, Lake,etc.
