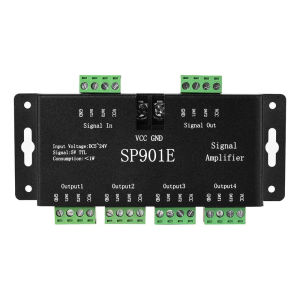

DC5V-24V SP901E Signal Amplifier LED SPI Controller 4CH Group Amplifier For WS2812 2811 DMX512 LED Pixels Strip Magic Module

Warm reminder:The number of pixels of the SP901E amplifier band depends on the main control, such as the main control controller can control 1000 pixels,Amplifier 4 ports, then each port can control 1000 pixels, then a total of 4000 pixels.SP901E SPI Signal Amplifier for WS2812B WS2811 WS2813 Pixel RGB LED Strip Signal Repeater Addressable Dream Color Tape DC5-24V(1) This SPI signal amplifier is compatible with various 5V-TTL signal dual-channel signals. It receives one signal and outputs 4 or 8 signals at the same time. Each channel can control the same number of LED pixels as the main controller.(2) It can output 8 single data line addressable light strips, such as WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, etc. Can output 4 data lines, addressable light strips WS2801, APA102, SK9822 or dual data lines, such as WS2813, WS2815(3) You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strips at the same time, through this signal amplifier to control DC12V WS2811, DC12V WS2815, DC12V 1903, DC12V 6803 at the same time, because they have the same signal.(4) The DC5V~24V operating voltage range is wide, but the output voltage cannot be adjusted. This means that the output voltage of the power
