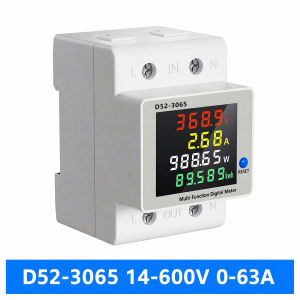

Aideepen | 4 IN1Digital Energy Meter Din Rail Electricity Usage Monitor DC14-600V 63A Voltage Current Watt Kwh Frequency Power Meter

Product Features:Measurement functions and display: 178° wide-angle color LCD display, simultaneously showing four electrical parameters including DC voltage, current, power, and battery level2. Automatic Power Measurement Data Saving Function: In the event of a power outage, the meter will automatically save the current power measurement value. Upon next power-on, the meter will read this value and continue accumulating measurements based on it3. Press and hold the reset button on the front panel of the instrument for 5 seconds to clear the accumulated power reading. Simple to use and easy to install4. This instrument is installed in a rail-mounted style and does not require an external power supply. The measured voltage serves as the operating voltage of the instrument5. Wide Application Range: Suitable for measuring DC equipment at 14-600V/63A, applicable to DC motors, solar photovoltaic power generation, battery energy storage systems, and moreProduct Parameters:Voltage: DC 14-600VCurrent: 0-63APower: 0-37,800WElectricity: 0-99,999 kWhMeasurement accuracy: 1% ± 2 digitsVoltage and Current Resolution: 0.1V/0.01APower and energy resolution: 0.01W/0.001kWhSampling rate: 2 times per secondInstallation method: Rail-mounted (C45 rail, 35mm)Display method: LCD liquid crystal displayDimensions: 806454mmPacking ListElectric meter*1Instruction Manual  User Guide  Operation Manual
