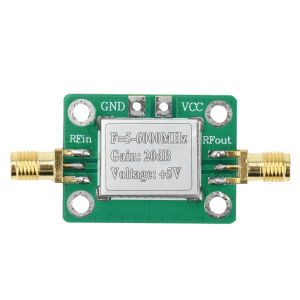

DC 5V RF Module 5-6000MHz LNA Low Noise Signal Amplifier High Gain 20dB Ultra-Wideband Medium Power Amplifier with Shielded Case

Product Features:1. This is a 5–6000 MHz RF signal power amplifier with 20 dB gain.2. It features a large dynamic range and a wide operating frequency range.3. The supply voltage is 5 VDC, and the operating current is 85 mA.4. The maximum output power is +21 dBm (100 mW) at the 1 dB compression point.5. It is suitable for fixed-gain amplification of all types of RF signals.Specifications:Operating Frequency: 5–6000 MHzAmplifier Gain: 20 dBMaximumOutput Power: +21 dBm (100 mW) @ 1 dB compression pointOperating Current: 85 mA (5 V)Supply Voltage: 5 VDCSystem Impedance: 50 ohmsDimensions: 34 × 25 mm / 1.33 × 0.98 inNote: Relevant principles for RF and microwave circuit layout should be followed during use.Package Includes:1 * RF ultra-wideband medium-power amplifier (5 MHz–6 GHz, 20 dB gain) with shielded housing
