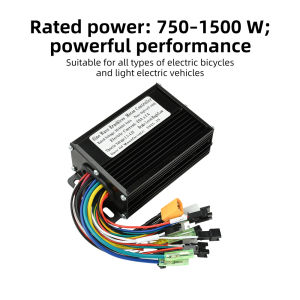

Aideepen | 36V 48V 64V Sine Wave Brushless Motor Controller 750-1500W 30A For S866 V889 No.2 Protocol Meter Electric Scooter E-bike Repair

Features:1. Supports multiple input voltages (36V, 48V, 64V), making it suitable for various battery systems and offering excellent compatibility2. Utilises sine wave control technology for smoother operation and lower noise, enhancing the riding experience3. The LCD display clearly shows status and data, whilst the backlight ensures the screen remains visible even in dimly lit conditions4. Rated power of 750–1500W delivers strong performance, suitable for a wide range of electric bicycles and light electric vehicles5. Easy to install and use, comes with an LCD display bracket compatible with 22.5mm handlebarsSpecifications:Product Name: Sine Wave Brushless Motor ControllerSpecifications: 750W–1500W, 36V/48VMaterial: Black and gold aluminium alloyOperating voltage: 36V/48V/64VRated power: 750W–1500WCurrent: 30AMOSFET: HY3410Compatible displays: S866, V888, SW900, 890Functions: Headlight power (Light), Throttle, Protocol 2 display (Display), Hall sensor, E-brake, Anti-theft power supply, Power-assisted (PAS), Self-studyButton Guide:1. When powered off, press and hold the button to power on; once powered on, press the power button to cycle through the ODO, TRIP, VOL and TIME displays2. When powered on, press and hold the button to power off; press briefly to increase PAS level by 1; press briefly to decrease PAS level by 13. Press and hold the + button to enter mode settingsModifying parameter values: When viewing a specific parameter, press the button briefly to cycle through parameters; press briefly to increase the value, or briefly to decrease it. Once modified, press briefly to move to the next parameter and save the previous value; once all parameters have been modified, press and hold the + button again to exit the settings interface. If no action is taken, the system will automatically exit after 8 seconds and save the parameters.Package list:Brushless motor controller × 1
