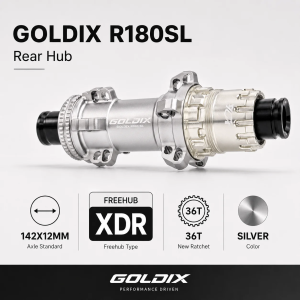

GOLDIX R180SL Road Bike Disc Hub 20H Ultralight 255g 36T Star Ratchet Hub Swiss Standard Carbon Spoke Ready 10-12 Speed

GOLDIX originates from China's largest manufacturer of bicycle hubs. We offer a comprehensive range of product models and specifications, backed by robust technical expertise.We invite you to explore and purchase our products. Additionally, we provide custom services for non-standard designs.Should you have any questions, please do not hesitate to contact us!Brand: GOLDIXModel: R180SL Road Bike Hubs (Ultralight Series)Freehub Type: HG / XDRFront Hub Spacing: 100x9 / 100x12mmRear Hub Spacing: 135x10 / 142x12mmBrake Type: Center-Lock Disc BrakeSpokes: T-Type Carbon Spokes (20 Holes)Bearing Brand: Taiwan SSFront Hub Bearings: Hub Shell — 6803 x 2 (for 100x12 spacing)Rear Hub Bearings: Hub Shell — 15267 x 1, 6802 x 1; Freehub Body — 6802 x 2Max. Spoke Tension (Single Spoke): 2500NWater & Dust Resistance Rating: IP42–IP53Ratchet System: All-New Spiral Engagement (36T)Weight: Please refer to the product images (Note: A weight variance of ±10g may occur between different production batches; placing an order signifies your acceptance of this condition).Freehub Type Guide: (Important: Please verify your drivetrain system and the required freehub model before purchasing; otherwise, installation will not be possible.)HG: Compatible with Shimano 10–12 Speed SystemsXDR: Compatible with SRAM 10–12 Speed SystemsProduct Features: The all-new GOLDIX R180SL Carbon Spoke Hub Series features a comprehensive upgrade to its ratchet engagement structure. Compared to standard designs of equivalent weight and tooth count,the new ratchet system increases the engagement surface area by 38%. This results in significantly enhanced load-bearing capacity and more stable power transmission, distinguishing it from ordinary flat-toothed ratchets by utilizing a concentric, radially balanced block distribution pattern. The overall force distribution exhibits a block-like, quasi-annular, and linear trajectory, with stress levels reaching approximately 630 MPa. In contrast, the new GOLDIX ratchet features a tooth profile with a flat surface guided by an oblique tangent to the base circle; consequently, the overall force distribution follows a conical, centripetal trajectory. This guided design enables the pawls to engage the ratchet teeth more smoothly and precisely, accelerating the engagement process, significantly reducing free travel, and ensuring a more direct power response. Furthermore, it endows the system with an automatic self-centering function, allowing the ratchet to operate stably along a consistent axis during riding, thereby effectively minimizing ratchet misalignment and enhancing engagement stability. Stress levels are approximately 480 MPa; under simulated conditions involving the application of 230 N·m of torque to the tooth surface, the peak stress was reduced by approximately 32%. Under equivalent operating conditions, the service life of the new GOLDIX ratchet is significantly longer than that of a standard 36T flat-surface ratchet.
