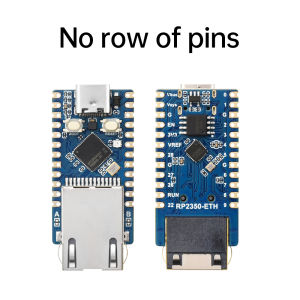

RP2350-ETH Microcontroller Development Board Based on the Raspberry Pi RP2350 Ethernet Interface Module Type-C Port

Product Features:1. The RP2350-ETH is based on the RP2350 and features an on-board Ethernet interface, making it easy to use.2. It features 4MB of on-board Flash memory, is compact and easy to integrate, and supports development environments such as C/C++ and MicroPython, as well as a variety of communication modes.3. Featuring a unique dual-core, dual-architecture design, it is equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, both operating at a flexible clock speed of up to 150 MHz.4. It comes with a built-in Type-C interface and can be recognised as a mass storage device via USB, enabling drag-and-drop programme downloads.5. Compact and easy to integrate, it utilises a stamp-hole gold-plated design with a highly integrated package, supporting a variety of embedding and combination methods for use in various product applications.Product Specifications:Features the RP2350 microcontroller chipUnique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, both operating at up to 150MHz with flexible clockingBuilt-in 520KB of SRAM and 4MB of on-chip FlashOn-board CH9120 with integrated TCP/IP protocol stack14 GPIO pins, compatible with some Pico expansion boardsStamp-hole design, allowing direct soldering and integration onto user-designed backplanesRecognised as a mass storage device via USB for drag-and-drop firmware downloadingOn-chip temperature sensor12 programmable I/O (PIO) state machines for custom peripheral support800mA LDO voltage regulatorCompact size, measuring just 45.8mm × 21mmProduct list:Development board × 1
