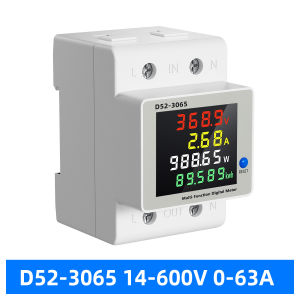

DIN Rail DC Energy Meter DC14-600V 63A 4-in-1 Single Phase Multifunctional LCD Display Voltage Current Power Energy Monitor

Features:1. Measurement Functions and Display: 178° wide-angle color LCD display that simultaneously shows four electrical parameters: DC voltage, current, power, and energy consumption.2. Automatic Energy Measurement Data Save Function: In the event of a power outage, the meter automatically saves the current energy consumption value. Upon power restoration, the meter automatically retrieves this value and continues accumulating data from that point.3. Press and hold the reset button on the front panel for 5 seconds to clear the accumulated energy reading. Simple to use and easy to install.4. This meter features a DIN-rail mounting design and requires no external power supply; the measured voltage serves as the meter’s operating voltage.5. Wide range of applications: Suitable for measuring DC equipment from 14–600 V and up to 63 A, including DC motors, solar photovoltaic power generation, and battery energy storage systems.Parameter:Voltage: DC 14–600 VCurrent: 0–63 APower: 0–37,800 WEnergy: 0–99,999 kWhMeasurement Accuracy: 1% ± 2 digitsVoltage/Current Resolution: 0.1 V / 0.01 APower/Energy Resolution: 0.01 W / 0.001 kWhSampling Rate: 2 times per secondMounting Type: DIN rail (C45 rail, 35 mm)Display Type: LCDDimensions: 80 × 64 × 54 mmPackage include:Tester1Instruction manual1
