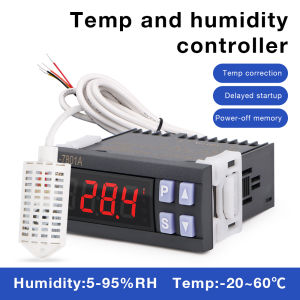

ZL-7801A Incubation Temperature and Humidity Controller Microcomputer Digital Thermometer Hygrometer Incubator Temp Monitor

ZL-7801A Incubation Temperature and Humidity Controller Microcomputer Digital Thermometer Hygrometer Incubator Temp MonitorZL-7801A is a temperature and humidity controller. IP65 level front panel protection, convenient operation and easy installation. Suitable for control of incubator, climate chamber, greenhouse, warehouse, and so on.Specification◇ Power supply: 100 ~ 240Vac, 50/60Hz◇ Input Signal: One humidity and temperature sensor(ZL-SHR05A)Wire length 2.0 meter. It could be extended.The length limit is 5 meters.◇ Output load: (Resistive parameter)R1 load,5A/250VacR4 and R5 load,3A/250VacR2 and R3 load,16A/250Vac◇ Setting Range:Humidity 5.0 ~ 95.0% RH Temperature -20.0 ~ 60.0℃◇ Sensor accuracy: Humidity ±3%Temperature ±2%0.1 absolute accuracy after calibrated.◇ Working environment:Humidity 10 ~ 90% RH without dew Temperature -20 ~ 45℃◇ Device dimension: W78 * H34.5 * D71 mm◇ Drilling size:W71 * H29 mm◇ Case materials:PC + ABS, fireproof◇ Protection level: IP65 (front panel only)Main Function1. Heating control (R3)2. Dehumidify control/ Humidify control (R2)3. Humidity load (R2) delay protection4. Timer 1 control (R4 R5) (egg left-turning, egg right-turning)5. Timer 2 control (R1) (Ventilation)6. Temperature and humidity measurement and display7. Temperature and humidity calibration8. Sensor failure warningWiring Diagram
