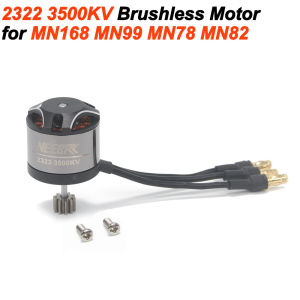

NEEBRC 2322 2600KV 3500KV Motor AM32 45A Brushless ESC SM3.0 Plug for 1/12 RC Car Crawler MN99 MN168 MN78 MN82 Upgrade Power Kit

NEEBRC 2322 2600KV 3500KV Brushless Motor AM32 45A ESC SM3.0 Plug for 1/12 RC Car Crawler MN99 MN168 MN78 MN82 Upgrade Power Kit Features: Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearboxSmaller size, stronger powerNo need to polish the bottom shell or car shell during installationAfter modification, low-speed torque compensation, better linearity, easy to climb Specification:Applicable vehicle models: MN82 MN99S MN168 MN78 Product: 2322 2600KV external climbing motorUsing voltage range: 5.5-9V Rated voltage: 7.2[VDC]No-load current: 1200 [mA] maxNo-load speed: 19000±10%[rpm]Load torque: 100 [gf.cm]Load speed: 17000+10% [rpm]Direction: CCW/CW (viewed from the output shaft end)Insulation grade: Class BAxial play: 0.3 [mm] maxMotor Connector：3.5mm Banana PlugNumber of gear teeth: 10T Product: 2322 3500KV external climbing motor Rated voltage: 7.4[VDC] 1-3S No-load current: ≤1.3ANo-load speed: 26000±5%[rpm]Motor internal resistance (mQ) (ambient temperature: 25 ° C): 42mΩ±3%Number of extreme slots：12N14PKV： 3500KV Weight：32.5gDirection: CCW/CW (viewed from the output shaft end)Number of gear teeth: 10T Features:1-Simulated FOC,extremely excellent low-speed linearity and powerful low-speed torque2-Parameter adjusters and software can be used to adjust and adapt to various types of motors3-Low internal resistance Mos tube, strong impact resistance4-Waterproof treatmentAM32 45A ESC Specification:Voltage:7.4-11.1VLipo:2-3SBEC Output:6V/2ABattery Connector:SM3.0 PlugContinuous/Peak Current:45A/260AMotor Type: 2322/2204/2205 Outer rotor motorsCompatible Vehicles：1：18/1：12 Climbing/Off Road VehicleDimensions: 32.525.59.5mmCase Material: Heat shrink shell
