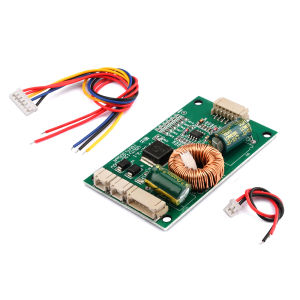

occkic | LED LCD TV Universal Backlight Driver Module LED Inverter Board 14-65 Inch Boost Constant Current Converter Booster Adapter

Product Features:1. This lifting plate is designed using a wide voltage input/output method;2. The output voltage can be automatically adjusted according to the voltage required by your light strip, and the input voltage is determined by two wiring methods;3. Equipped with input and output connection lines;4. Small size, high power;5. Suitable for 14 inch to 65 inch LED LCD TV universal backlight board.Product Parameters:Input voltage: 12-200VOutput voltage: automatically adjustable between 24-400VSize: 72mm in length * 44mm in widthWiring instructions:This lifting plate is designed with a wide voltage input and output method, and the output voltage can be automatically adjusted according to the voltage required by your light strip. The input voltage is based on two wiring methods.1. Connect two red and yellow wires together to 12V, and connect the blue wire to the power on/off signal (BLON). If it is an integrated board, it is usually on the back of the board. If the BLON cannot be found, it can be connected to the 5V of the USB, and the black wire is grounded.2. The red wire is connected to the output of the motherboard between 12v and 200v, the yellow wire is connected to 12v, the blue wire is connected to the power on/off signal (BLON), and the black wire is grounded. Attention: If the input voltage is 12V for power supply, the voltage of the light strip should not exceed 100V. If it is 24V for power supply, the voltage of the light strip should not exceed 200V. Try not to overload it to avoid durability. Thank you.The output voltage is automatically adjusted according to the required voltage of the light strip, which means that the voltage required by your light strip will be raised to the required voltage by the voltage regulator. Connect the red line of the positive pole output to the negative pole output of the light strip. Just connect it to the negative pole of the light bar.3. If several sets of light strips can be combined together, and the above connections are correct, you can safely turn on the power. If the image appears dark when powered on, you can adjust it according to the j1/j2/j3/j4/j5 of the boost board. Short circuiting the solder joints of j1 can increase the brightness. Short circuiting J2 will increase again. Similarly, adjust the brightness to the appropriate level.Product List:1X driver board2 X-rays
