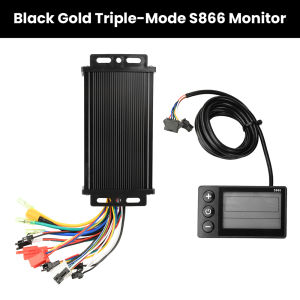

Aideepen | 36V/48V/64V 30A Sine Wave Brushless Motor Controller 750-1500W 3-Mode Driver for E-Bike with LCD Display S866 V888 SW900 890

Product Features:1. Supports multiple voltage inputs of 36V, 48V, and 64V, adapts to different battery systems, and has strong compatibility2. Adopting sine wave control technology for smoother operation, lower noise, and improved riding experience3. LCD display screen can clearly display status and data, and backlight allows you to see the screen clearly in dim environments4. Rated power of 750-1500W, strong power, suitable for various electric bicycles and light electric vehicles5. Easy to install and use, equipped with an LCD display bracket, suitable for 22.5mm handlebarsProduct parameters:Specification: 750W-1500W 36V/48VMaterial: Aluminum alloy, black goldWorking voltage: 36V/48V/64VRated power: 750W-1500WCurrent: 30AMOS transistor: HY3410Matchable instruments: S866, V888, SW900, 890Function: Headlight power supply (Light), Throttle, Dispatch, Hall, E-brake, Anti theft power supply, PAS, Self studyButton Introduction:1. Press and hold the power button to turn on the device when it is turned off; After booting up, press the power button to switch the interface between ODO, TRIP, VOL, and TIME2. In the power on state, press the long button to turn off the device, press the short button to activate the power mode+1, and press the short button to activate the power mode -13. Long press button+key to enter mode settingsParameter value modification: In a certain parameter state, the short button switches parameters, increases the value, and decreases the value. After modification, the short button switches to the next parameter and saves the previous parameter value; After completing the parameter modification, press and hold the key again to exit the settings interface. If not pressed, wait for 8 seconds for automatic exit and save the parameters.Packing ListController * 1Wire harness * 1Instrument * 1
