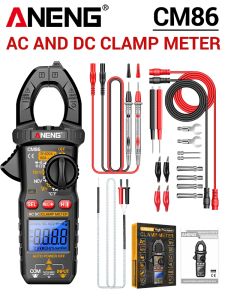

ANENG | ANENG CM86 Auto-Range Clamp Meter 600A AC/DC Voltage Current LCD Backlight NCV Temp Frequency Electrician Maintenance TooL

ANENG CM86 Auto-Range Clamp Meter 600A AC/DC Voltage Current LCD Backlight NCV Temp Frequency Electrician Maintenance TooLProduct OverviewANENG CM86 is a multifunctional digital clamp multimeter designed for professional electricians, engineering operation and maintenance personnel, electrical maintenance technicians, and DIY enthusiasts. It integrates multiple core detection functions such as AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature measurement, NCV non-contact electrical testing, and diode detection. It adopts a 6000 count high-definition backlit LCD screen, matched with practical configurations such as data locking, relative value measurement, low battery reminder, flashlight lighting, and 15 minute automatic shutdown. The whole machine adopts an ABS anti slip shell, weighs only 174g, and is portable and easy to operate.SpecificationsCM86 Parameters Technical IndicatorsFunctionRangeResolutionPrecisionDC current0A-600A0.01A-0.1A±(2.5%+8)AC current0A-600A0.01A-0.1A±(3.5%+6)DC voltage0mV-600V0.1mV-1V±(2.0%+2)AC voltage0V-600V0.001V-1V±(0.8%+3)Resistance0Ω-60MΩ0.1Ω-0.01MΩ±(1.2%+3)Capacitor0nF-60mF0.001nF-0.01mF±(4.0%+5)Hz0Hz-9.999MHz0.001Hz-0.001MHz±(1%+2)Temperature °C°F-50~1300°C1°C±(1%+2)-58~2372°F1°FNCV voltage induction√Low power prompt√On/Off√Flashlight lighting√Diode√Battery type2X1.5V AAA battery(without shipment)LCD backlit display√Maximum count6000 countData retention√MaterialABSREL relative value measurement√Automatic shutdownIf there is no operation within 15 minutes after starting,the meter wil automatically shut down to save power.THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL!Function Details1. Large caliber AC/DC current clamp measurement, no need to disconnect to measure currentSupports non broken measurement of 0-600A AC/DC current. When electricians detect the current of distribution circuits, motor loads, and socket outlets, they can directly clamp a single wire to read it without dismantling the wiring, greatly improving the efficiency of circuit inspection. It is suitable for current load investigation work in household power distribution, small factory equipment, and vehicle circuits.2. Comprehensive testing of electrical parameters in all dimensionsIn addition to current measurement, it can also perform routine multimeter testing for AC/DC voltage, line resistance, capacitance, and operating frequency. It also supports dual temperature detection in Celsius/Fahrenheit, taking into account both line electrical parameters and equipment temperature rise detection. One device can replace ordinary multimeters and thermometers, reducing the number of tools carried during outdoor operations.3. NCV non-contact electrical testing+diode detectio nNCV induction can quickly predict whether the line is live through the insulation layer, and avoid the risk of electric shock in advance; The diode gear can detect the voltage drop of rectifier diodes and circuits, and is suitable for troubleshooting household appliance circuit boards and automotive electronic components, covering common testing needs for daily maintenance.4. Professional reading optimization design1).000 count high-definition LCD with backlight, able to read values clearly even in dim computer rooms and outdoor work at night2).Data Hold: Freeze measurement values, allowing for easy recording of data in high places and narrow spaces3).REL relative value measurement: can be used for difference comparison to quickly determine component parameter deviations4).Equipped with a built-in flashlight for illumination, it can be synchronously illuminated when repairing the wiring terminals of the circuit5).Low battery warning, reminding to replace the battery in advance to avoid measurement data distortion5. Long term energy-saving designEquipped with a 15 minute automatic shutdown mechanism without operation, reducing the consumption speed of AAA batteries; The lightweight ABS body weighs only 174g, making it less prone to fatigue during long-term handheld operations. The outer shell is resistant to frequent bumps and is suitable for complex use environments in construction sites and repair shops.Packing  List：（Without Battery）1 * AC and DC clamp meter 1 * Packing box1 * Manual1 * Temperature line 1 * Test pen line[Instructions for Use]Open the battery compartment of the device, insert 2 1.5V AAA batteries, press the power button to turn on the device, and select the corresponding measurement gearCurrent detection: Release the clamp and clamp a single wire to be tested. Wait for the value to stabilize before reading the result. Press the Hold key to lock the readingVoltage/Resistance/Capacitance/Frequency Measurement: Connect the matching probe to the corresponding socket and make contact with the measured point to complete the measurementTemperature detection: Connect the temperature probe, switch the temperature range, and freely switch between two temperature scale readings of ℃/℉NCV power test: Switch to NCV mode, place the body close to the cable to be tested, and determine the live status of the line through induction prompts; The diode gear can detect the voltage drop during the conduction of electronic componentsTurn on the backlight and flashlight button to adapt to low light operations; Press the REL key to enable relative difference measurement; Replace the battery promptly after triggering a low battery warningAfter the measurement is completed, the device will be turned off. In idle state, the device will automatically power off and save electricity after 15 minutes
