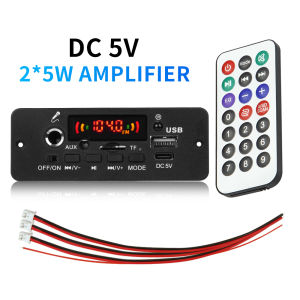

KEBIDU | DC 5V 10W Bluetooth 5.0 Stereo DIY Car MP3 Player Decoder Board 2*5W Amplifier Wireless FM Radio Module TF USB Handsfree Call

Model: JQ-D129BTMicrophone functionBluetooth version 5.0Power supply voltage: 5V (range 3.7V-5V) and current not less than 2A.Power: 25W, and two 5W speakers can be connected at the same time.Connect the microphone function,Folder switching functionMusic format: MP3/WMA/WAV/APE/FLAC lossless music format.Radio FM frequency: 87.5—107.5mhz.Introduction of support function: Support MP3/USB/TF/LINE IN/FM/Bluetooth/remote control/DC 5V.About structure: panel size: 94 * 35 MM, two corners of the panel and the position of screw holes, and the depth of the panel is 38 mm.1. Microphone interface;2. IR: infrared receiving module;3, LED: color screen display, digital display in red;4. USB: Connect a U disk (maximum support 32 GB);5. OFF/ON: power switch;6, VOL-: short press is to select the previous song; Long press is to reduce the volume; Double-click to switch to the previous folder;7. AUX: Audio input interface;8. SCAN: Short press is to switch between pause and play; In FM state, short press is an automatic station;9. TF card: connect TF memory card (maximum support 32 GB);MP3 Decoder Board connection diagramMain functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote controlBluetooth version 5.0Support 6.5mm microphone function10W AmplifierSupport 6.5mm karaoke microphoneDC 5V25W Amplifier wireless Bluetooth 5.0 MP3 decoder boardSupport Handsfree callSize:MP3 Decoder Board : 943538mmSmall remote control:85*39mm
