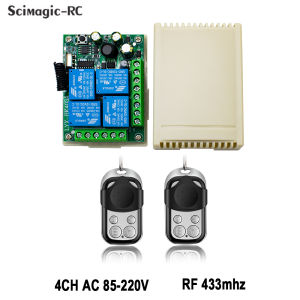

433MHz Universal Remote Control Receiver Transmitter AC 85-250V 110V 220V 4CH Relay Switch for LightDoorGarage

RF Wireless Remote Control Switch 433Mhz AC 110V 120V 240V 220V 30A 4CH Relay For Garage Door Light Lamp Door Access SystemReceiverWorking Voltage : AC 85V~256VInput vlotage : 1~220VOutput vlotage : 1~220VQuiescent Current : Max current : 10 AMax load : 2200WRF frequency : 433MHzWorking temperature : -30~+80Receiving Sensitivity : >97dbmAmount of storage remote controls : 25 piecesSupport encoding : 1527 Leaning codeRF Operating mode : ASK superheterodyne wireless receptionReceiving range : Open space is more than 30 metersRemote operating mode : Momentary Mode /Toggle Mode /Latched ModeOutput Terminal : NO / COM / NC1.KC1 Normal Closed of relay (NC)2.KC1 Common of relay (COM)3.KC1 Normal Open of relay (NO)4.KC3 Normal Closed of relay (NC)5.KC3 Common of relay (COM)6.KC3 Normal Open of relay (NO)7.KC2 Normal Closed of relay (NC)8.KC2 Common of relay (COM)9.KC2 Normal Open of relay (NO)10.KC4 Normal Closed of relay (NC)11.KC4 Common of relay (COM)12.KC4 Normal Open of relay (NO)(When the relay is energized, NO and COM connected).Remote ControlRF frequency : 433MHzSupport encoding : 1527 Leaning code Transmitting range : up to 100 m (theoretical distance)Battery : 12V 23A (Battery not included)About Working Mode:1. Momentary/Joggle:Press and hold->On; Release->OffKeep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter )2. Toggle/Self-Lock:Press->On; Press again->OffPress one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter).3. Latched/Inter-Lock:Press->on; Press other button->OffPress one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).The Setting of Working Mode:1.Momentary Mode:Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.2. Toggle Mode:Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode successfully.3.Latched Mode:Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator means setting Latching Mode successfully (first button stands for on, second button stands for off ).This receiver contain 4 relays, and there are 3 terminals(normally open, common, normally closed) for each relay.This 4 relays are independent, so that you can remote control each of them independently by pressing the remote button. Each receiver can store about 25 transmitters. And One transmitter can control multiple receivers( the transmitter need to match with receiver ).For example you can use two relays to control garege door/ motor and the other two to control Lights.Wide range of usesProducts can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as, garage door, electric door, shutter door, expansion door and electric curtain, fan, Lamp, lighting, ventilation device, Signal transmission and so on.With antenna 433Mhz RF wireless remote control switch.Stable and reliable performance with high reception sensitivity (> - 105dBm). Radio frequency signal transmission.Strong signal can pass walls, floors, doors,board and so on.It can be controlled within 100 meters distance with no obstacle.Product Pictures
