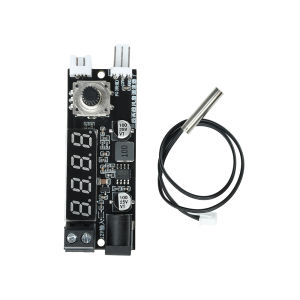

ANENG | DC 12V 3A 2-3 Wire Fan Temperature Speed Controller LED Digital Temperature/Speed Display and Adjustable Output Voltage

Features1. Supports 2-wire and 3-wire fan connections, offering strong compatibility and plug-and-play functionality2. Digital display for temperature and RPM; one-button switching between dual modes for at-a-glance status monitoring3. High-current 3A output for stable operation of various types of cooling fans4. Continuously adjustable output voltage from 0–12V to precisely match different load requirements5. Suitable for temperature control in multiple scenarios, such as computer server rooms and aquariums—one device, multiple usesProduct DescriptionThe 3-wire/2-wire fan temperature control module is a temperature-to-voltage regulation module with a digital display. The DC005 terminal can be powered by a router adapter and outputs a corresponding voltage based on temperature changes. When the temperature reaches the preset low (L) value, voltage output begins; as the temperature rises, the voltage automatically increases; when the temperature reaches the preset high (H) value, the maximum voltage is output, and the fan runs at full speed. It can display either temperature or RPM. By unplugging the temperature probe and powering the unit back on, you can switch to manual speed control. Primarily used in heat dissipation and temperature control applications.ParameterOperating Voltage: DC 12VAdjustment Method: Encoder adjustmentMaximum Output Current: 3AOutput Voltage: 0–12VAdjustable Temperature Range: -25–120°CH Value Range: -24–120°CL Value Range: -25–119°CTemperature Recovery Range: 0–15°CRPM/Temperature Display: Toggle by short pressTemperature/RPM Display Probe: NTC 10K 3950B, 30 cm cable lengthPackage includeFan Speed Controller × 1Temperature Probe × 1
