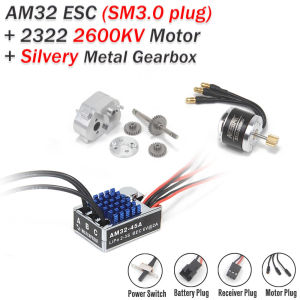

NEEBRC 2322 2600KV 3500KV Brushless Motor AM32 45A ESC Metal Gearbox for MN99S MN82 MN168 MN78 1/12 MN RC Car Crawler Upgrade

NEEBRC 2322 2600KV 3500KV Brushless Motor AM32 45A ESC Metal Gearbox for MN99S MN82 MN168 MN78 1/12 MN RC Car Crawler Upgrade Features:Applicable vehicle models: MN82 MN99S MN168 MN78Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearboxSmaller size, stronger powerNo need to polish the bottom shell or car shell during installationAfter modification, low-speed torque compensation, better linearity, easy to climbSpecification:Product: 2322 2600KV Motor Using voltage range: 5.5-9VRated voltage: 7.2[VDC]No-load current: 1200 [mA] maxNo-load speed: 19000±10%[rpm]Load torque: 100 [gf.cm]Load speed: 17000+10% [rpm]Direction: CCW/CW (viewed from the output shaft end)Insulation grade: Class BAxial play: 0.3 [mm] maxApplicable vehicle models: MN82 MN99S MN168 MN78Product: 2322 3500KVMotor Rated Voltage:7.4[VDC] 1-3SUncharged current: ≤1.3AUnloaded speed: 26000±5%[rpm]Internal motor resistance (mQ) (ambient temperature: 25°C): 42mΩ±3%Number of Extreme Slots: 12N14PVoltage:3500KVWeight: 23.5 gAddress: CCW/CW (viewed from the exit axis end)Number of gear teeth: 10TAM32-45A ESC：Using voltage range: 7.4-11.1VCont.Current:45AStart-up:Sine startBattery Connector: SM3.0 Plug/T PlugLow speed torque compensation: Comes with low-speed torque compensationSize: 38.52818.5mmMetal Gearbox Features:100% Brand NewMade of High Quality Meterial, Stronger and More Durable, Improve the AppearanceEasy to use,Easy to replace.Metal Gearbox Specifications:Material:MetalQuantity:1 SetSuitable for: MN168 MN82 MN78 MN99S 1/12 RC Car USBLinkFor AM32/BL32, connects the ESC to a computer for configuration or firmware upgrade.Portable and easy to use, simply connect the ESC signal plug, connect the USB Type-C cable to a computer, and install the VCP driver.AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.Specification:Item Name: AM32 ESC Param Converter USB LinkProduct size: 41.50.8cmPackage size: 4.8831cmQuantity: 1 pieceItem Name: AM32 ESC Param Converter Type-C LinkProduct size: 2.51.10.8cmPackage size: 321cmQuantity: 1 piecePackage List：1 * 2322 brushless motor（Optional）1 * AM32 45A ESC（Optional）1 * Metal Gearbox set（Optional）1 * Parameter adjuster （Optional）
