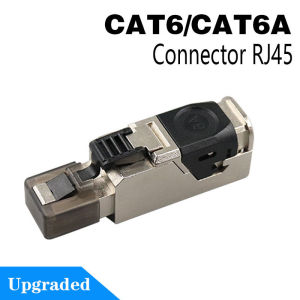

Vention | CAT8 STP RJ45 Connector CAT7 CAT6A Reusable Ethernet Termination modular Plug Shielded Modular Zinc alloy Field Termination Plug

Product introduction:This product is divided into three types of connectors with the same functions, but the applicable wire gauges are different, namely CAT6 cat6a cat7 cat8. Please select different connectors according to your needs. This connector can be reused.1. Product Name: DIY Zinc Alloy rj45 Connector Cat6A/Cat7/Cat8 Plug2. The Material of Housing: Zinc alloy die-casting with nickel-plated3. The Material of Contact: Phosphor bronze with 100 micro-inch nickel plated4. Suitable for:22AWG-24AWG Stranded & solid wires Cat6A/7/8 Ethernet Cable5. Type: Cat6A/7/8 Ethernet Connector with metal boot6. Contact Finish: Min. 50 micro-inch gold plated on surface contact area7. IDC Terminal: Titanium copper tin plated8. PCB: UL94-V09. Metal Boot: Zinc alloy die-casting with nickel plated10. T568A & T568B wiring11. Insetion Force: Max 30N (IEC 60603-7-5)12. Retention Strength: 7.7kg between jack and plug13. Life of Contacts: 750 cycles min. (ISO/IEC 11801  IEC 60603-7-5)14. Life of IDC: 20 repeated installation cycles15. Suitable cable jacket: OD: 6.0mm - 8.0mm16. Operating temperature: -10 to 60 degree 17. Packing: PE Bag
