DSPOWER 2KG 3KG 6KG Waterproof Digital Plastic/Metal Gear Servo Core Motor for 1/10 1/12 1/14 RC Car Helicopter Plane Toy Robot

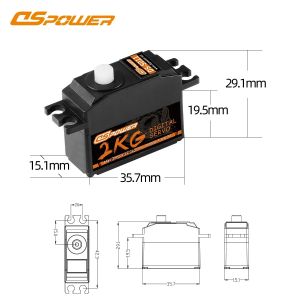

DSPOWER 2KG 3KG 6KG Waterproof Digital Plastic/Metal Gear Servo Core Motor for 1/10 1/12 1/14 RC Car Helicopter Plane Toy RobotFeatures:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name: DSpower DS-S011Operating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥2.5kgf·cm ; 6.0V≥3.5kgf·cmNo Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°Stall Current:4.8V ≦1200mA;6.0V≦1800mAConsumption Current* (No Load):4.8V ≦50mA;6.0V≦70mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Plastic gearHorn Gear Spline:25T/Φ5.77mmWeight: 21gSize: 42.3 × 15.4 × 32.1mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Item name: DSpower S011MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥5.0kgf·cm ; 6.0V≥6.5kgf·cmNo Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°Stall Current:4.8V ≦1900mA;6.0V≦2500mAConsumption Current* (No Load):4.8V ≦120mA;6.0V≦130mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Remoto Controller operating Angle: About 90°±10°Horn Gear Spline: 25TDead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 21gSize: 42.3 × 15.4 × 32.1mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Item name: DSpower DS-S012Operating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥4.5kgf·cm ; 6.0V≥5kgf·cmNo Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°Stall Current:4.8V ≦1800mA;6.0V≦2200mAConsumption Current* (No Load):4.8V ≦60mA;6.0V≦80mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Plastic gearHorn Gear Spline:25T/Φ5.77mmWeight: 37gSize: 49.5 × 20.2 × 40.7mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Item name: DSpower DS-S013QOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥6.0kgf·cm ; 6.0V≥7.5kgf·cmNo Load Speed : 4.8V≤0.18sec/60°; 6.0V≤0.16sec/60°Max. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Plastic gearWeight: 52gSize: 49.5 × 20.2 × 36.64mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Item name: DSpower S013MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥6.0kgf·cm ; 6.0V≥6.8kgf·cmNo Load Speed : 4.8V≤0.23sec/60°; 6.0V≤0.21sec/60°Stall Current:4.8V ≦2100mA;6.0V≦2400mAConsumption Current* (No Load):4.8V ≦130mA;6.0V≦140mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Remoto Controller operating Angle: About 90°±10°Horn Gear Spline: 25TDead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 49gSize: 49.5 × 20.2 × 36.64mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Package included:1 * 2KG/3KG/6KG Digital Servo1 * Servo Arm Accessories
