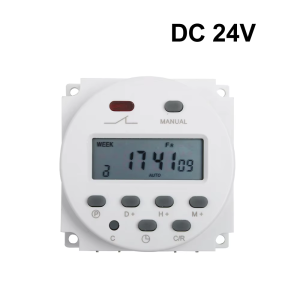

Universal CN101A Digital Timer Switch Programmable Time Relay 12V 24V 220V 16A Power Controller For Home Electrical Appliances

CN101A DHC15 THC-101A weekly programmable din rail timer switchBASIC FEATURES:Panel mountedAdvanced pre-setting one week beforeDigital electronic timer switch with daily programsRepeat programs with 20 on/off setting and manual over-rideLithium battery power reserve when electric supply cut offAuto timer error correction +-30sec,weeklyTECHNICAL DATA:Voltage tating: 220VACCustom order Voltage: 12V, 24V, 36V, 48V, 110,220VHysteresis: 2 sec/dayON/OFF operation:20 ON/OFFDisplay: LCDMinimum interval: 1 minuteSwitching contact:1 changeover switchPower reserve: 3 yearsAmbient temperature:-10~+40CAmbient humidity: 35~85 RHExpansionSet times: 20 times switch (day / week)Setting time: 1 minute to 168 hoursTravel time error: 1s/24hPower failure memory: 60 days (built-in 1.2V rechargeable battery)Dimensions: 60x60x32mmInstalled by the way: screw connector connection (plus 72x72mm panel enclosure can be installed by)How to use it ?StepKeyProgramming1Press PSetting1 ON time(display 1on)2Press H+/M+Setting hours and minutes3Press D+To select same every day,or different time each day4Press PSetting 1 off time (display 1 off)5Press H+/M+Setting hours and minutes turn off time6Press D+If you want the same every day, you need not press this key7Repeat step2-6Set 2-17 on/off time8Pressend
