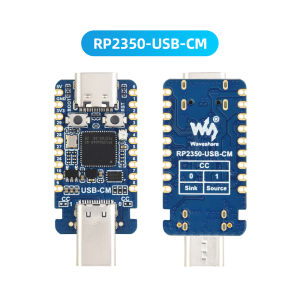

occkic | RP2350 USB-C/CM Mini Development Board RP2350A Waveshare Expansion Board Programmable I/O Compatible with USB 1.1 Transmission

RP2350-USB-C/RP2350-USB-CMProduct Features:1. Equipped with RP2350A dual core dual architecture chip, 150MHz main frequency, ARM/RISC-V architecture for free switching2. Stamp hole half hole mini board type, dual Type-C, supports bidirectional switching of power supply from USB host to slave3. Built in 520KB SRAM+2MB flash memory, equipped with 15 GPIO ports and SPI/I2C/UART/ADC/PIO peripherals4. Supports low-power sleep mode, drag and drop burning, and comes with on-chip temperature sensing precision monitoring chip5. Adapt to IoT terminals, DIY peripherals, industrial control, embedded teaching, and small automation equipment developmentCharacteristic parameters:Version: RP2350-USB-C PIO-USB Female Edition; RP2350-USB-CM PIO-USB Public Port VersionAdopting RP2350A microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with clock operating frequency up to 150MHz, supporting users to flexibly switch between the two architecturesBuilt in 520KB SRAM and 2MB on-chip FlashAdopting Type-C interface, there is no need to worry about forward and backward insertionSupport Type-C interface power supply (compatible with PD protocol)Stamp hole design, can be directly welded and integrated into the user's self-designed base plateUSB 1.1 host and slave device supportSupport low-power sleep and sleep modeCan be recognized as a large capacity storage device through USB for drag and drop download of programs15 GPIO pins of RP2350A lead out2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channelsAccurate on-chip clock and timerBuilt in temperature sensor for real-time monitoring of chip temperature12 programmable I/O (PIO) state machines for custom peripheral supportProduct List:1X moduleRP2350 development boardProduct Features1. Equipped with RP2350A main control chip, full pin IO output, matched with BOOT and RST debugging buttons, debugging operation is convenient and efficient.2. Compatible with various development environments such as C, C++, and MicroPython, USB direct connection to a computer can be recognized as high-capacity storage, and program burning can be completed by copying files.3. Standard Type-C power communication interface, built-in dedicated voltage reduction and stabilization module, equipped with GPO25 controllable LED indicator light, intuitive status, stable and universal wiring.4. Reserve independent Debug interfaces and complete hardware debugging channels to meet the needs of deep development such as program debugging and low-level development.5. Built with half hole technology, it has a compact and lightweight appearance, can be embedded and integrated, and is suitable for secondary development of various intelligent devices.Product OverviewThe RP2350 development board is developed based on the RP2350A and comes with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, with all IO ports leading out and BOOT and RST keys onboard, making it easy for users to debug. It supports various development environments such as C, C++, MicroPython, Ard, etc. The module can be recognized as a large capacity storage device through USB for program burning.Product Parameters:Main control chip: RP2350A (LQFN-60 package)Onboard storage: W25Q16JVUXIQ small FLASH chipInterface: Type-C interfaceCircuit configuration: Built in voltage reduction and stabilization modulePeripheral indicator light: GPO25 controllable LED indicator lightFunction buttons: BOOT start button, RESET reset buttonExpansion interface: fully exported GPIO port, independent Debug portProduct size: 51mm * 21mm (there may be slight errors in manual measurement, please refer to the actual product)Burning method: Connect the USB to the computer and recognize it as a large capacity storage device. Copy the program files directly and burn themHardware debugging: Equipped with dedicated buttons and Debug port, convenient for program debugging and low-level developmentProduct List:1X development board3X needle arrangement
