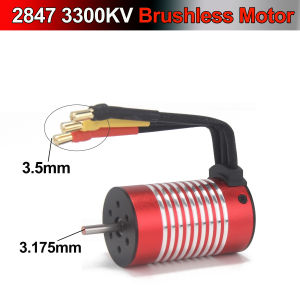

NEEBRC 2847 2800KV 3300KV 4300KV 5600KV 3.175mm Shaft Brushless Motor for 1/12 1/14 RC Car Tamiya Redcat MJX Hyper Go HBX WLtoys
NEEBRC 2847 2800KV 3300KV 4300KV 5600KV 3.5mm Shaft Brushless Motor for 1/12 1/14 RC Car Tamiya Redcat MJX Hyper Go HBX WLtoys
Specification Product Name: 2447 Brushless Motor KV:2800KV Rated voltage(V):7.4V(2-3S) No-load current(A/7.4V):≤2A No-load speed(rpm/7.4V):21000±5％
Motor resistance (mΩ)(ambient temperature: 25℃):27mΩ±3％ Number of poles：12N4P Overall weight：121g Overall voltage resistance(DC)：DC500V（3S） Overall balance(mg)：≤20mg Tilt (viewed from the axle end)：Clockwise/Counterclockwise Use ambient temperature (℃)：-10℃ - 65℃ Storage temperature(℃)：-10℃ - 50℃ Preservation (％)：≤85% Overall appearance（mm）:≤0.1 Overall height(mm):60.8±0.2 Motor height (mm):47.3±0.2 Motor height (mm):28±0.1 Installation hole position (mm):6-M2.5,hole pitch 16mm Outline length (mm):Lead wire length: 80±5mm (Including 3.5mm bullet connector) KV:3300KV Rated voltage(V):7.4V(2-3S) No-load current(A/7.4V):≤2.5A No-load speed(rpm/7.4V):24500±5％
Motor resistance (mΩ)(ambient temperature: 25℃):23mΩ±3％ Number of poles：12N4P Overall weight：121g Overall voltage resistance(DC)：DC500V（3S） Overall balance(mg)：≤20mg Tilt (viewed from the axle end)：Clockwise/Counterclockwise Use ambient temperature (℃)：-10℃ - 65℃ Storage temperature(℃)：-10℃ - 50℃ Preservation (％)：≤85% Overall appearance（mm）:≤0.1 Overall height(mm):60.8±0.2 Motor height (mm):47.3±0.2 Motor height (mm):28±0.1 Installation hole position (mm):6-M2.5,hole pitch 16mm Outline length (mm):Lead wire length: 80±5mm (Including 3.5mm bullet connector)
KV:4300KV Rated voltage(V):7.4V(2-3S) No-load current(A/7.4V):≤3A No-load speed(rpm/7.4V):31500±5％ Motor resistance (mΩ)(ambient temperature: 25℃):18mΩ±3％ Number of poles：12N4P Overall weight：121g Overall voltage resistance(DC)：DC500V（3S） Overall balance(mg)：≤20mg Tilt (viewed from the axle end)：Clockwise/Counterclockwise Use ambient temperature (℃)：-10℃ - 65℃ Storage temperature(℃)：-10℃ - 50℃ Preservation (％)：≤85% Overall appearance（mm）:≤0.1 Overall height(mm):60.8±0.2 Motor height (mm):47.3±0.2 Motor height (mm):28±0.1 Installation hole position (mm):6-M2.5,hole pitch 16mm Outline length (mm):Lead wire length: 80±5mm (Including 3.5mm bullet connector)
KV:5600KV Rated voltage(V):7.4V(2-3S) No-load current(A/7.4V):≤4A No-load speed(rpm/7.4V):39500±5％ Motor resistance (mΩ)(ambient temperature: 25℃):10mΩ±3％ Number of poles：12N4P Overall weight：121g Overall voltage resistance(DC)：DC500V（3S） Overall balance(mg)：≤20mg Tilt (viewed from the axle end)：Clockwise/Counterclockwise Use ambient temperature (℃)：-10℃ - 65℃ Storage temperature(℃)：-10℃ - 50℃ Preservation (％)：≤85% Overall appearance（mm）:≤0.1 Overall height(mm):60.8±0.2 Motor height (mm):47.3±0.2 Motor height (mm):28±0.1 Installation hole position (mm):6-M2.5,hole pitch 16mm Outline length (mm):Lead wire length: 80±5mm (Including 3.5mm bullet connector)
