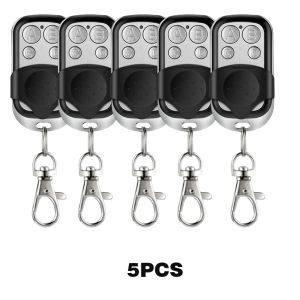

433MHz Metal Push Button Remote Control Transmitter ABCD 4Button Universal 4 Buttons Garage Door Opener Remote

Description:

Specifications:

Product: remote control

Color: silver black

Dimensions: 5.531.5cm

Frequency:433MHz

Working voltage: DC5V (battery a including)

Operating Current: ≤ 8mA

Modulation Mode: ASK (AM)

The transmission power: ≤ 100mW

Emission Distance: 50 to 100 m (proof)

The encoding type: self Copy

Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

Our 433 frequency remote control is not a universal remote control Compatible chips 2260 (all manufacturers), 2262 (all manufacturers), PT2264, SMC5326 (all manufacturers) SC5262、HT12E、HT12D、HT600、HT680、HT6207、HT6010、HT6012、HT6014、SMC918、SM5028S、 Series, 527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers) (foreign non-standard codes and domestic and foreign rolling codes are compatible). Abcd model code clear code: Press and hold the AB button for 5 seconds to successfully clear the code! After successful code clearing, pressing a button alone will turn it on and off at once!

Specifications:

1.Chips could be copied：

2260(all manufacturers);2262(All manufacturers);PT2264, 5326(All manufacturers);SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series,527(All manufacturers);1527(All manufacturers);2240(All manufacturers);HCS101, HCS200\HCS201(part code),HCS300\HCS30 part single chip microcomputer..........

2.Code cleaning method:

At the same time, press and hold the two keys of unlock and lock (some cases have two keys of up and down) and the LED indicator light will enter the state of fast flashing. At this time, all the data in the memory will be cleared. After the data is cleared, the remote control will not light up no matter which key you press.

3. Copy method

One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.（ Attention：Your original remote control must be able to work and the same as our remote control frequency）

Notice:

The essential condition for the selection of the remote control;the copyed remote control operates normal,chip is compatible and frequency is correct.

Before buying,please make sure the copyed remote control operating frequency or choose & buy the frequency adjustable type remote control.

Before buying,please confirm whether your remote control can be copyed or not.

Our remote control can copy the fixed codes and learning codes

rather than stealth cod

Package Included:

1* remote control
