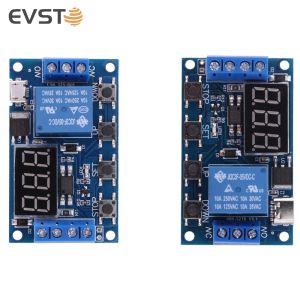

1 Way Delay Power Off Board 4 Button Time Delay Cycle Timing Circuit Switch Board with LED Display Electronic Components

One Channel Delay Cycle Timing Circuit Switch with LED Display Cycle Timer Delay Trigger Disconnect Module Electronic Components Features: 1. Convenient: This one-channel delay power off board offers wide voltage input (6-30V) and can also be powered through micro USB 5.0V, providing convenient options for power supply. 2. Customizable Parameters: You can set different OP, CL, and LOP parameters independently, allowing for flexibility in timing operations. All the settings of this disconnect trigger circuit switch are automatically saved even after power loss. 3. and Reliable: With a lifespan of over 100,000 cycles, this delay cycle timing circuit switch is built to last. It operates efficiently within a wide temperature range (-40°C to 85°C) and features a industrial-grade circuit board design. 4. Enhanced Interference Resistance: Equipped with optocoupler isolation, this digital tube timer control relay provides increased resistance against interference, ensuring stable and reliable performance even in challenging environments. 5. Emergency Stop Function: The one-key emergency stop of the cycle delay timing timer relay allows you to instantly halt the when needed, providing an additional layer of safety and control in critical situations. Specification: Origin: Mainland China Type: Module Condition: New Operating Voltage: 6--30v Support Micro Usb 5.0v Power Supply Trigger Signal Source: High Level Trigger (3.0v-24v) Signal Ground And The System Ground Is Not Common Ground To Improve The System'S Anti-Jamming Ability (Can Also Be Shorted To Common Ground) Output Capacity: Can Control Dc 30v 5a Or Ac 220v 5a Within The Device Static Current: 20mA Operating Current: 50mA Service Life: More Than 100,000 Times Operating Temperature: -40-85°C Size: 6.23.81.7cm/2.421.480.66in With Opto-Coupler Isolation To Enhance The Anti-Interference Ability, Industrial Grade Circuit Board, Set Parameters Are Always Memorized After Power Failure. Module Highlights: 1. Wide voltage power supply (6~30V) support micro USB 5.0V power supply, very easy to use; 2. Clear and simple interface, powerful and easy to understand, almost meet all your needs; 3. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn; 4. Different OP, CL, LOP parameters can be set, these parameters are independent of each other, saved separately; 5. All setting parameters are automatically saved by power down. Working Mode. P1:After the signal is triggered, the relay conducts for OP time and then disconnects; during the OP time, the following operations are performed P1.1: Signal trigger again is invalid. P1.2: signal triggered again to re-timing P1.3: signal triggers again to reset, relay disconnects and stops timing; P-2: give the trigger signal, after the relay is disconnected for the CL time, the relay conducts for the OP time, and after the timing is completed, the relay is disconnected; P3.1: give the trigger signal, after the relay conducts OP time, the relay disconnects CL time, then cycle the above action, give the signal again within the cycle, the relay disconnects and stops the timing; the number of cycles (LOP) can be set; P3.2: no need to trigger signal after power on, relay on OP time, relay off CL time, then cycle the above action; cycle times (LOP) can be set; P-4: Signal hold function If there is a trigger signal, the timing will be cleared to zero, and the relay will keep on; when the signal disappears, the relay will be disconnected after timing OP; during the timing period, if there is a signal again, the timing will be cleared to zero. Note: Relay output is a passive contact, not charged output, control a line on and off the role. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
