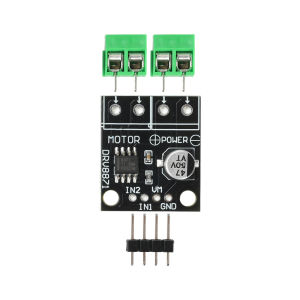

occkic | DC 6.5-45V DC H-bridge motor driver module DRV8871 3.6A brushed motor driver PWM control driver module Circuit Protection

Features:1. PWM Control: Supports pulse width modulation interface for precise speed and power control2. Wide Application: Can be used in printers, industrial equipment, and mechatronic systems3. Sensorless Current Regulation: Current can be adjusted without external resistors, simplifying design and enhancing stability4. Multiple Protections: Built-in overcurrent, short-circuit, undervoltage, and overheat protection ensure safe and stable operation of the equipment5. Multi-Functional Drive: Suitable for DC motors, stepper motor windings, and other loads, meeting diverse application requirementsParameter:Operating voltage: DC 6.5-45VControl level: 3.3/5VSingle H-bridge output peak current: 3.6A (default current threshold 2A)Typical RDS(on) (HS+LS): 565 mΩProduct dimensions: 25.2 x 21.7 x 10 mmModule interface: 2.54 mm pitch solder holesPrecautions:1. Do not reverse the power supply, otherwise there is a risk of burning out the chip.2. After receiving the module, please test that it is functioning properly before soldering.Package include:Module1Pin header1Terminal*2
