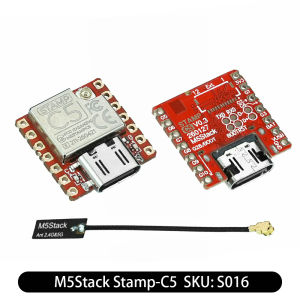

M5Stack | M5Stack Stamp C5 DIP ESP32-C5HF4 Development Board Supports 2.4 5GHz Dual-band WiFi 6 BLE 5 IoT Core Module

M5Stack Stamp C5 DIP ESP32-C5HF4 Development Board Product Features ESP32-C5HF4 main controllerRISC-V 32-bit single-core processor, up to 240MHz4MB FlashWireless connectivity2.4 & 5 GHz dual-band Wi-Fi 6BLE 5IEEE 802.15.4 (Zigbee, Thread)Interface and hardware designUSB Type-CDC 3.7V battery power input2.54mm pad pitchIPEX-1 antenna connectorRear FPC 0.5mm-12P interfaceSGM40567-4.2XG/TR charging IC2.4 & 5 GHz shared antenna designStatus indicatorsRED: Charging indicator (blinks while charging; turns off when fully charged)BLUE: G28 / BOOT indicatorPlatformIOApplications Dual-band Wi-Fi 6 IoT devicesZigbee / Thread edge nodesLow-power wireless sensing devices Package Includes Option 11 x Stamp-C5 DIP2 x 2.54-7P pin headersOption 21 x Stamp-C5 Product Comparison Specification Product details PinMap Module Size Product Description Stamp-C5 DIP is a highly integrated wireless connectivity module based on the Espressif ESP32-C5HF4, designed for IoT applications that require efficient and stable communication. It supports 2.4 & 5 GHz dual-band Wi-Fi 6, BLE 5, and IEEE 802.15.4 (Zigbee, Thread) multi-protocol connectivity, meeting device access requirements across different network scenarios. The module uses a RISC-V 32-bit single-core processor with a clock frequency of up to 240MHz, includes 4MB Flash, and integrates hardware resources such as USB Type-C, a battery power input, an FPC expansion interface, and an IPEX-1 antenna connector. The overall design adopts a 2.54mm pad pitch and includes 2 x 2.54-7P standard pin headers, making it easy to quickly connect various peripherals and expand functions. While ensuring connectivity performance and security, it helps developers complete prototype validation and product implementation more efficiently. Kindly Remind Enter Download ModeConnect G28 to GND, then power on the device to enter download mode.NotesWhen connecting the device FPC cable, strictly check whether the pin sequence matches correctly. Otherwise, the hardware may be burned out and damaged.M5Burner firmware
